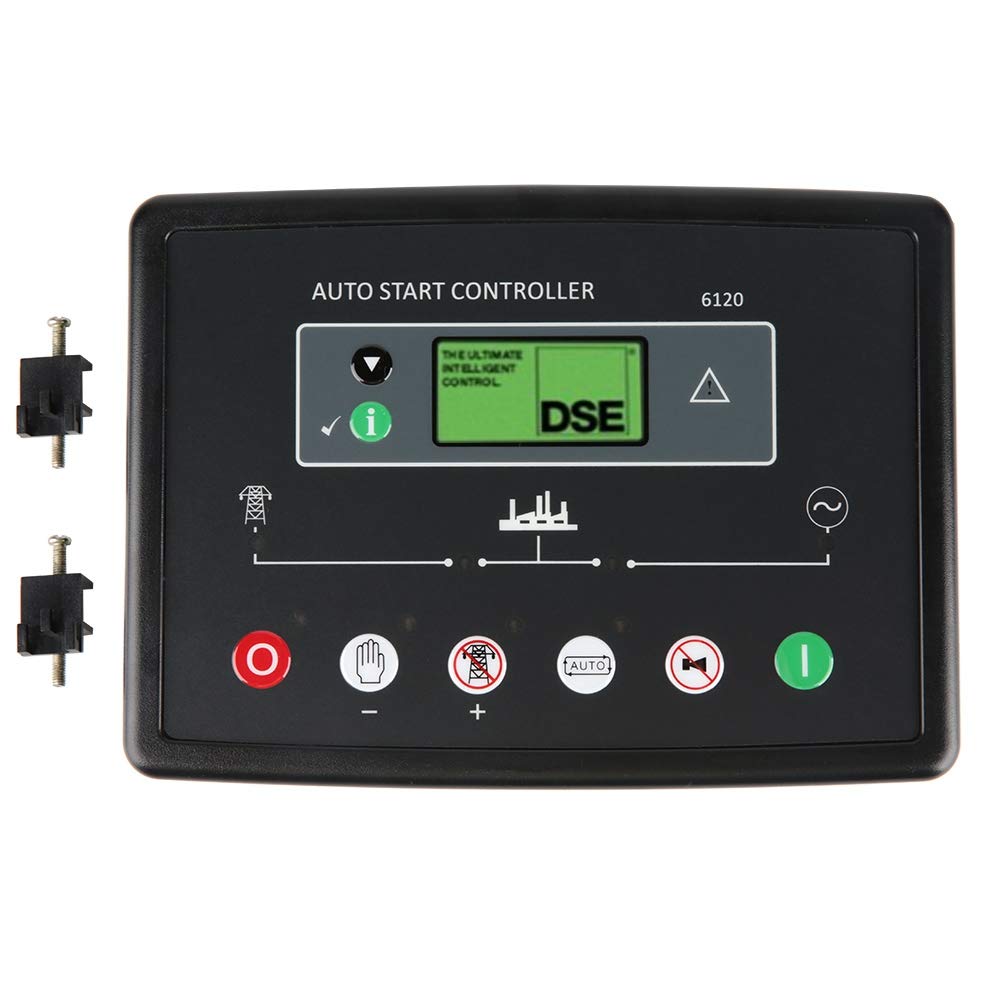

DSE6120 Electronic Diesel Generator Controller - LCD Display Control Panel for Genset | Reliable Power Management for Industrial, Marine & Backup Power Systems

Specification: Material: Plastic Weight: 526g/18.6oz Model: DSE6120 DC Supply: continuous voltage rating 8 V to 35 V Continuous Cranking Dropouts: Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking. Maximum Operating Current: 100 mA at 12 V, 105 mA at 24 V Maximum Standby Current: 60 mA at 12 V, 55 mA at 24 V Maximum Sleep Current:40 mA at 12 V, 35 mA at 24 V Generator & Mains(Utility): Voltage Range: 15 V to 415 V AC (Ph to N); 26 V to 719 V AC (Ph to Ph) Frequency Range: 3.5 Hz to 75 Hz Inputs: Digital Inputs A to F, negative switching analogue input A Configurable as: Negative switching digital input 0 V to 10 V 4 mA to 20 mA 0 Ω to 240 Ω Analogue Inputs B to D Configurable as: Negative switching digital input 0 Ω to 480 Ω Outputs: Output A (Fuel) 10 A short term, 5 A continuous, at supply voltage Output B (Start) 10 A short term, 5 A continuous, at supply voltage Auxiliary Outputs C, D, E & F 2 A DC at supply voltage Package List: 1 x Generator Controller 2 x Set Screws
