Features: Parameter setting: can set, process and various control parameters, to reach the optimal effect. Manual operation: can be achieved manually, jog, back to the program zero, back to mechanical zero, cleared coordinate operations. Program management: can create program , delete, modify, read, save, save, automatic processing, continuous, and pause. External Manual: Manually define a variety of external functions to facilitate the use Freedom to select the input function: the limited input port can achieve a variety of user needs CNC system consists of the following components: 1.High-performance, high-speed 32-bit ARM CPU 2.Liquid crystal display (resolution: 320 x 240) ,display size:60*45 3.Input / Output (10MA 16 opto-isolated inputs and 16 opto-isolated output pull-down 500MA) 4.Users machining program memory can be implemented in any storage TF card 5.Support Folder read, each folder maximum support 50 tool files Specifications: The smallest unit of data: 0.0001mm The maximum data size: ± 99999.999mm Maximum pulse output frequency: 50KHz (-axis simultaneous 50KHZ) Control axes: 4 axis (X, Y, Z, A) Linkage axle count: 4 axis linkage and four - axis multi - micro multi - line prospective interpolation control Weight: 611g Package includes: 1 x CNC Motion Controller 2 x Card 2 x Connection board 2 x fixed seat
【PARAMETER SETTING】 4 Axis CNC motion controller can set, process and various control parameters, to reach the optimal effect. The smallest unit of data 0.0001mm, The maximum data size ± 99999.999mm, Maximum pulse output frequency 50KHz (-axis simultaneous 50KHZ).
【MANUAL OPERATION】 Manually define a variety of external functions to facilitate the use, can be achieved manually, jog, back to the program zero, back to mechanical zero, cleared coordinate operations.
【FREEDOM TO SELECT THE INPUT FUNCTION】 The limited input port can achieve a variety of user needs, can create program, delete, modify, read, save, save, automatic processing, continuous, and pause.

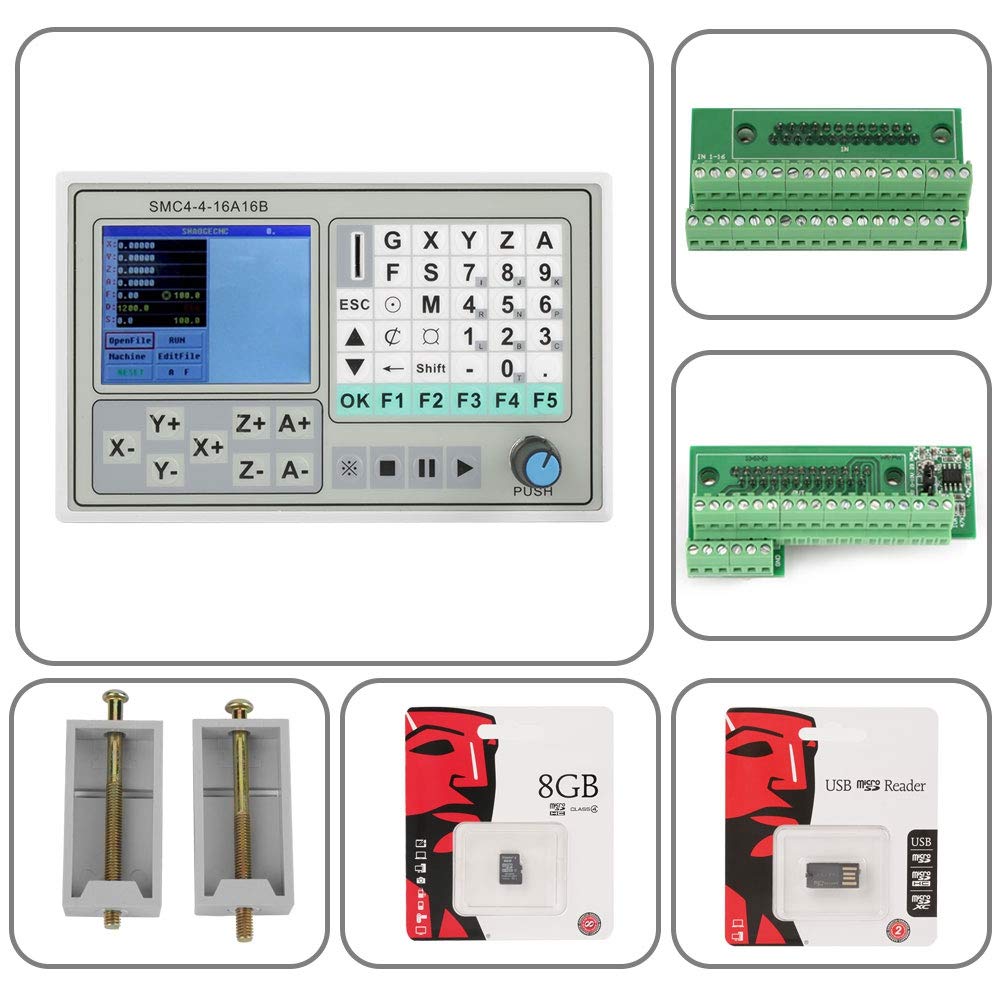

【CNC SYSTEM KIT CONTAINS】 1.High-performance, high-speed 32-bit ARM CPU; 2.Liquid crystal display (resolution 320 x 240) ,display size60*45; 3.Input / Output (10MA 16 opto-isolated inputs and 16 opto-isolated output pull-down 500MA); 4.Users machining program memory can be implemented in any storage memory card; 5.Support Folder read, each folder maximum support 50 tool files.
