75904819

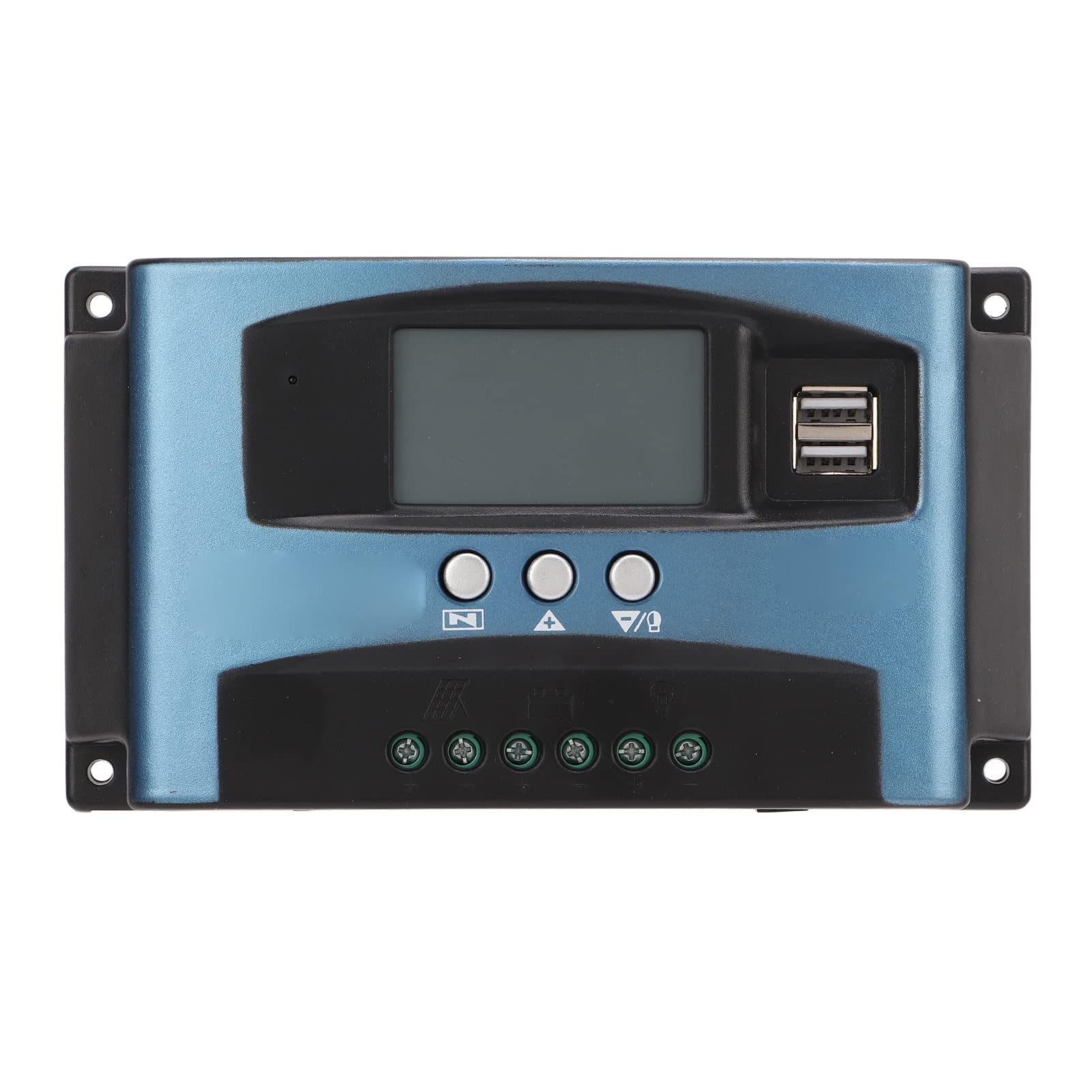

Specification:Item Type: Solar ControllerMaterial: PVCSystem Voltage: 12V/24V self adjustmentSolar Photovoltaic Voltage: 12V with 18V solar panel, 24V with 36V solar panelFloat Voltage: 14.2V (default value, )Discharge Static Voltage: 10.7V (default value, )Discharge Recovery Voltage: 12.5V (default value, )Standby Voltage: USB Output: 5V/2A maximumWorking Temperature: -10+60°CWeight: Approx. 315g / 11.1ozPackage List:1 x Solar Controller1 x Chinese And English ManualNote:1. The controller automatically adapts to 12V/24V, or another version of 12/24/36/48/60V to manually set the appropriate battery charging mode. When installing for the first time, please make sure that the battery has enough voltage to start and automatically set the controller parameters.2. Install the controller as close to the battery as possible to avoid voltage drop caused by too long wires and affect the normal voltage judgment.3. This controller is suitable for all kinds of lead acid batteries (including open‑sealed colloidal batteries). If you need to be familiar with the battery characteristics of the lithium battery, you must set the charging parameters before using it.4. The controller can only use photovoltaic panels as the charging source. Do not use DC or other power sources as a charging source5. The controller will heat up when it is running. Please install the controller on a flat and well ventilated surfaces.
[Large LCD] Non stop detection during charging, two way focusing tracking, large screen LCD display, charging and discharging parameters, ultra wide charging.
[Effectively Battery] Complete 3 stage charging management, which can effectively the battery, the battery is more durable, so you can use it with confidence.
[High Accuracy] Industrial grade main control chip, 16 level AD sampling accuracy, accurate real time display of temperature, charging current, and discharging current, and power generation at a glance.
[ Full Protection ] Built in overheating, overcurrent, short circuit, open circuit protection, reverse connection protection, when the fault is eliminated, the controller will automatically recover without damaging the equipment
[Simple To Use] As long as you understand the battery characteristics and set the corresponding charging parameters, you can charge any battery, the time can be adjusted, and it is easy to use。
