Original DSE3110 Deep Sea Generator Controller for Diesel Genset - Reliable Power Management for Marine, Industrial & Emergency Backup Systems

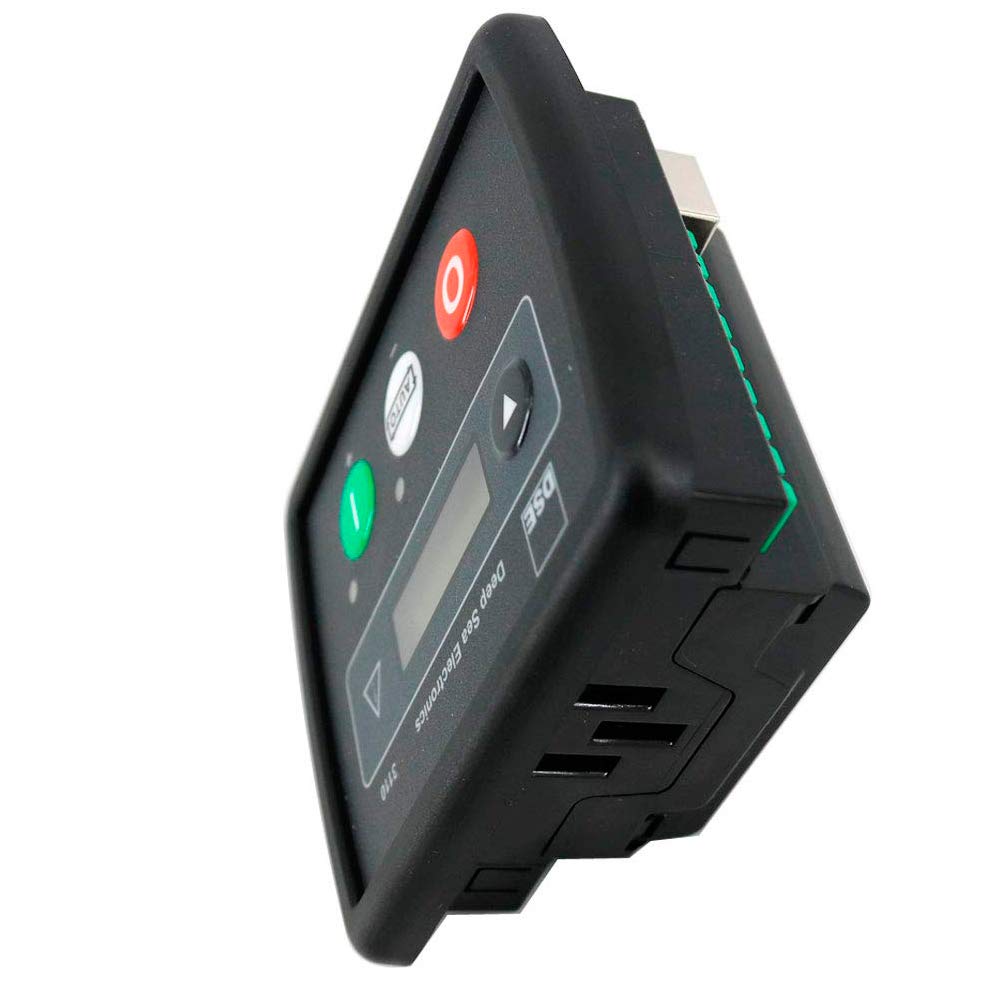

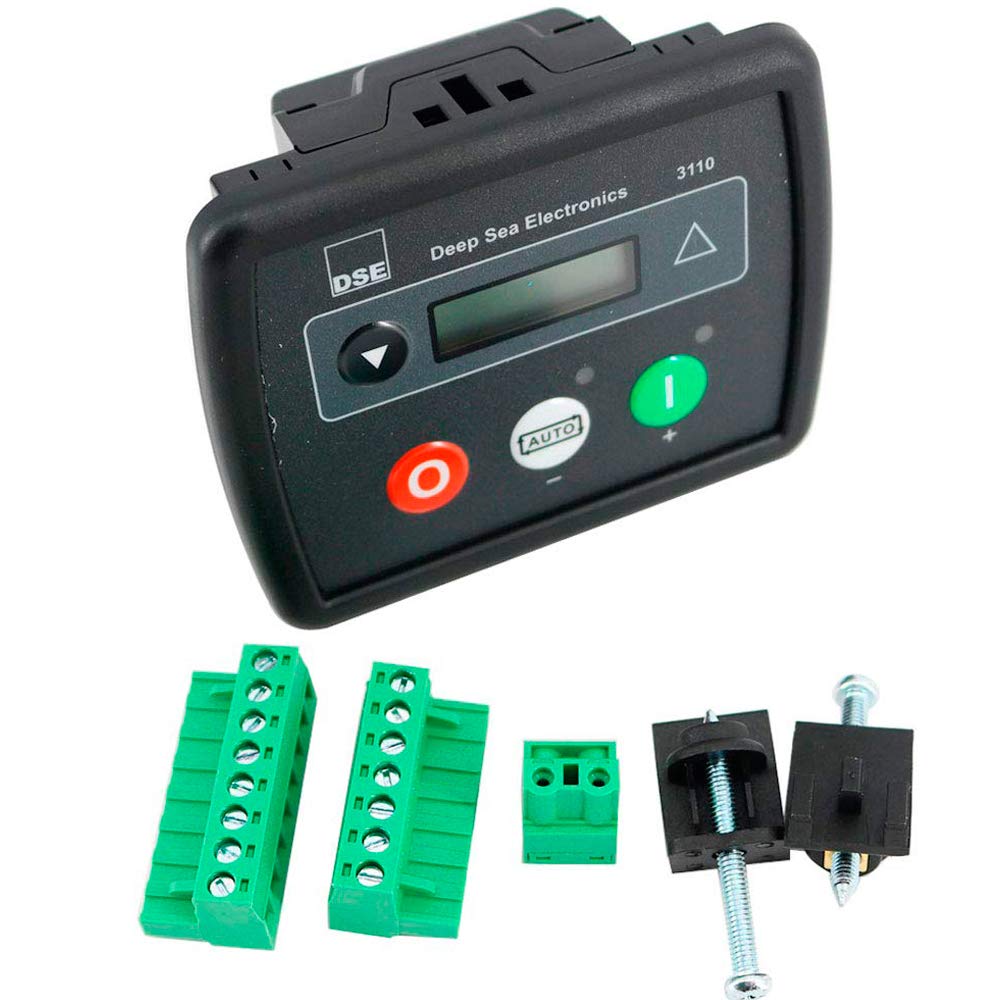

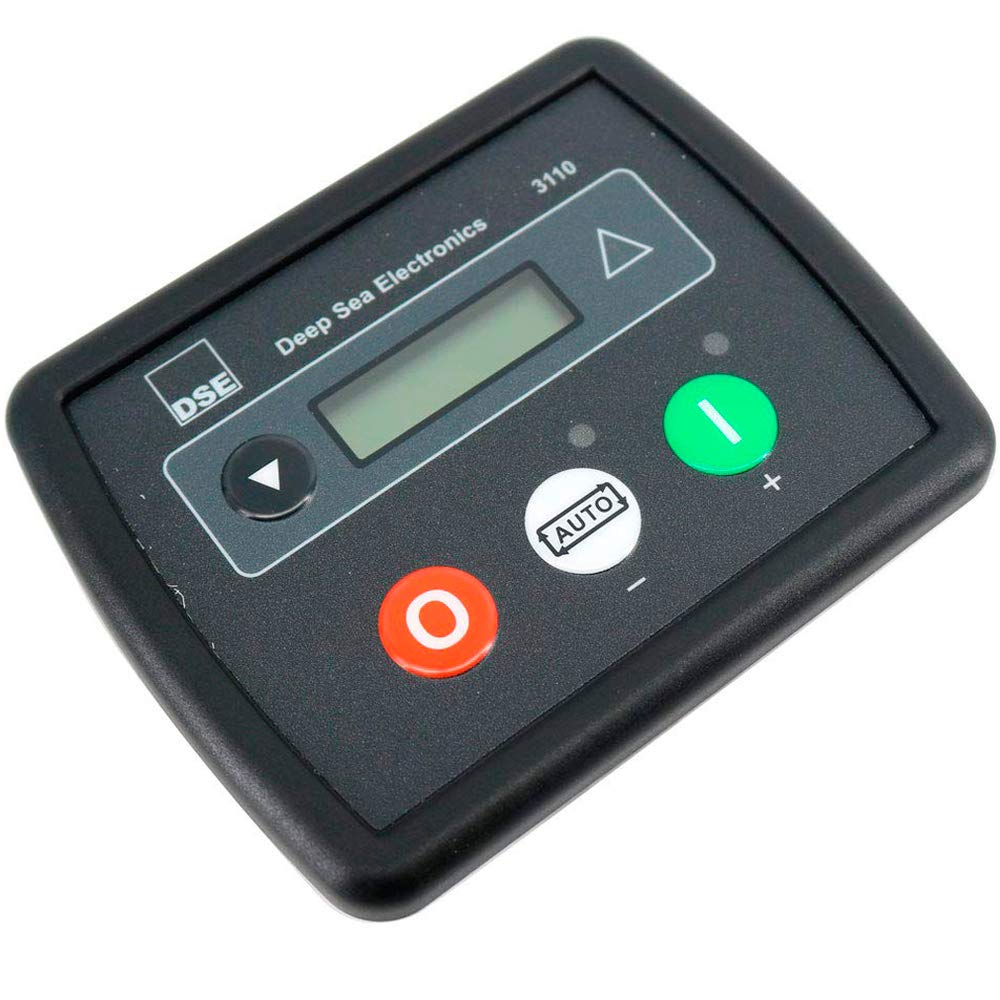

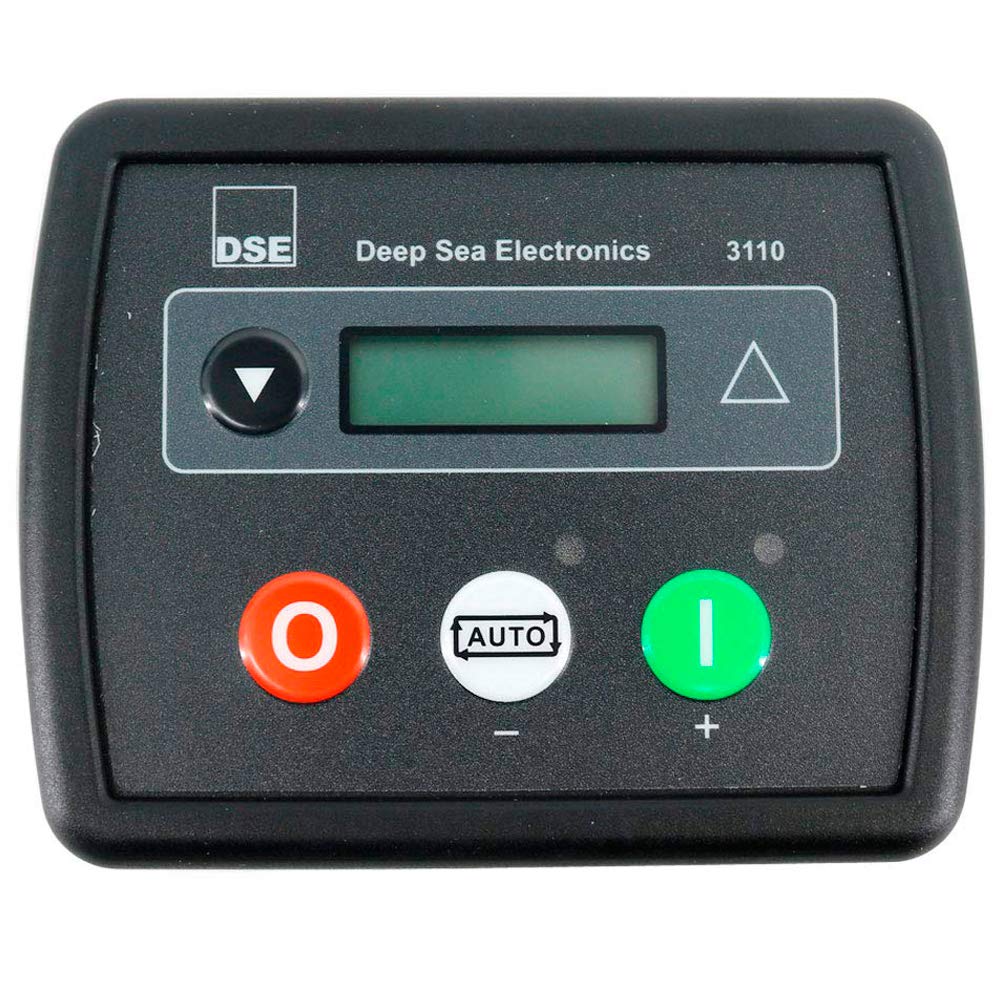

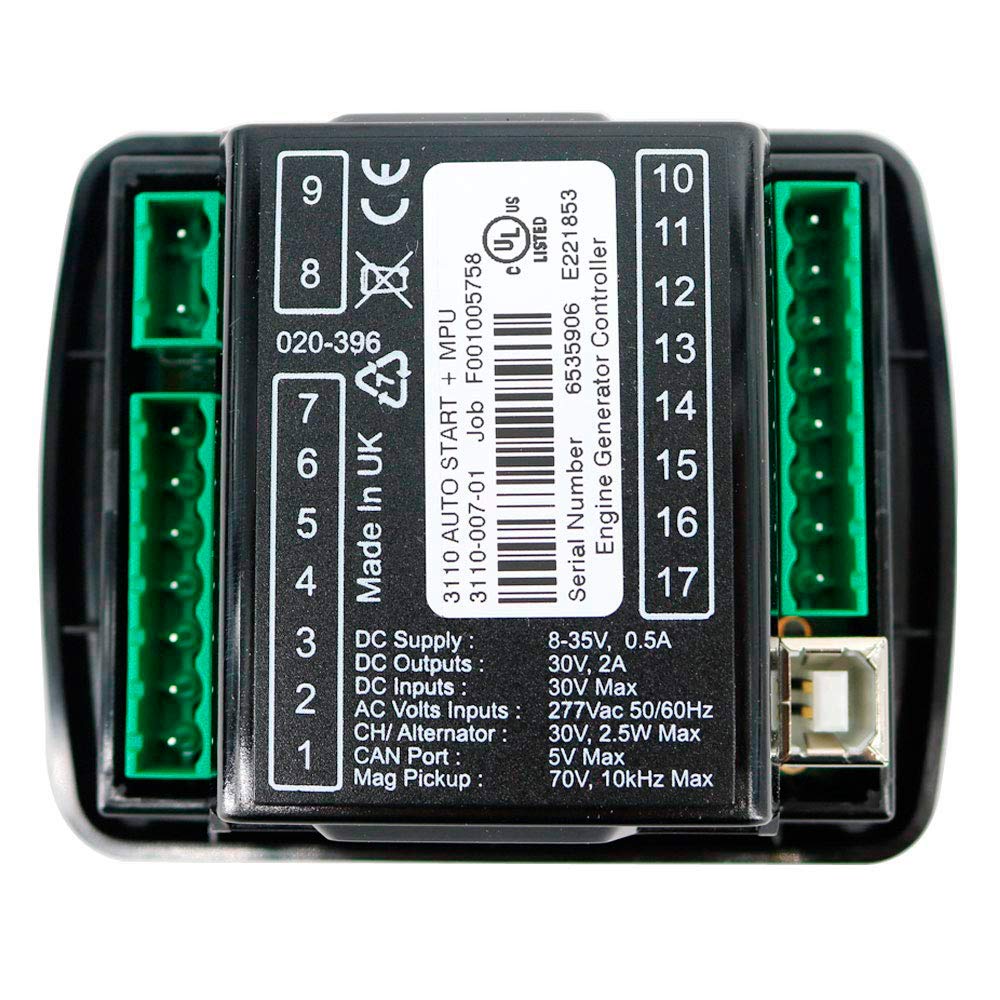

The DSE3110 is an outstanding compact control module that provides a comprehensive range of features for single-set applications. The controller can be used in manual or auto start mode.The DSE3110 can be utilised as a manual or auto start module for single generating set applications and forms part of DSE's next generation of control modules. The module has been designed to work with electronic and non-electronic engines providing advanced engine monitoring and protection features.The DSE3110 includes a back-lit LCD display which clearly shows the status of the engine at all times. The module monitors engine speed, frequency, voltage and run hours and also displays the warning and shutdown status of the engien.The module includes six digital inputs and four outputs. The module can either be programmed using the front panel or by using the DSE configuration suite PC sofeware.OVERALL SIZE 98 mm x 79 mm x 40 mm (3.9” x 3.1” x 1.6”) PANEL CUTOUT SIZE80 mm x 68 mm (3.1 " x 2.7")MAXIMUM PANEL THICKNESS8.0 mm (0.3”)
