57945013
Specification: Power supply: DC 6.5-25V, DC 5V Working current: 83mA Standby current: 41mA Relay load current: <5A Delay time: 0.1-.9 seconds, 1-9999 seconds, 1-9999 minutes Size: 8*5cm/3.2*2in Weight: Approx. 51g/1.8oz

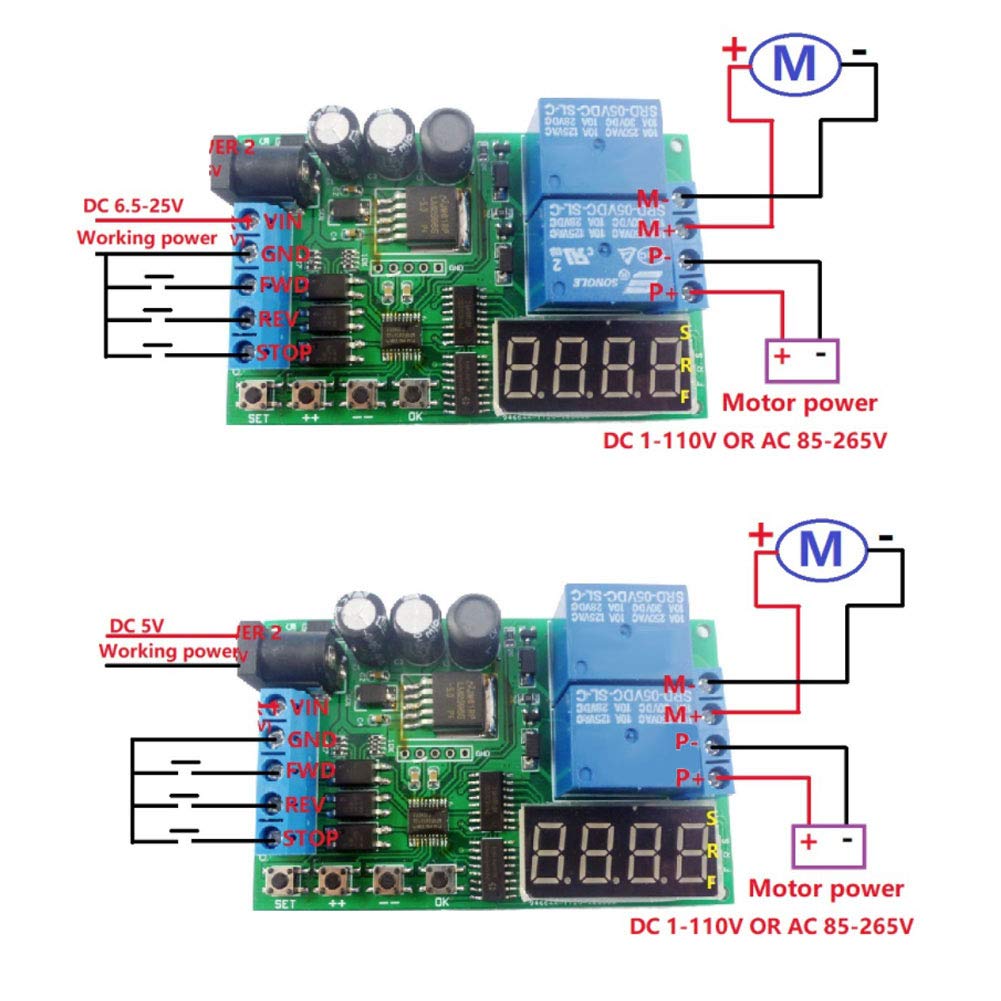

power supply (two power supplies cannot be powered at the same time) Power supply 1, DC 6.5-25V; Power supply 2, DC 5V.
Working Current (Normal Mode) Standby current 41mA, working current 83mA; (Energy-Saving mode) Standby current 7mA, working current 44mA.
Cycle Times No cycle, 2-99 cycles, always cycle. Delay time 0.1-.9 seconds, 1-9999 seconds, 1-9999 minutes.
Two input modes, Low-Pulse mode, Low-Level mode. There are three input control port forward control(FWD), reverse control(), and stop control(STOP).

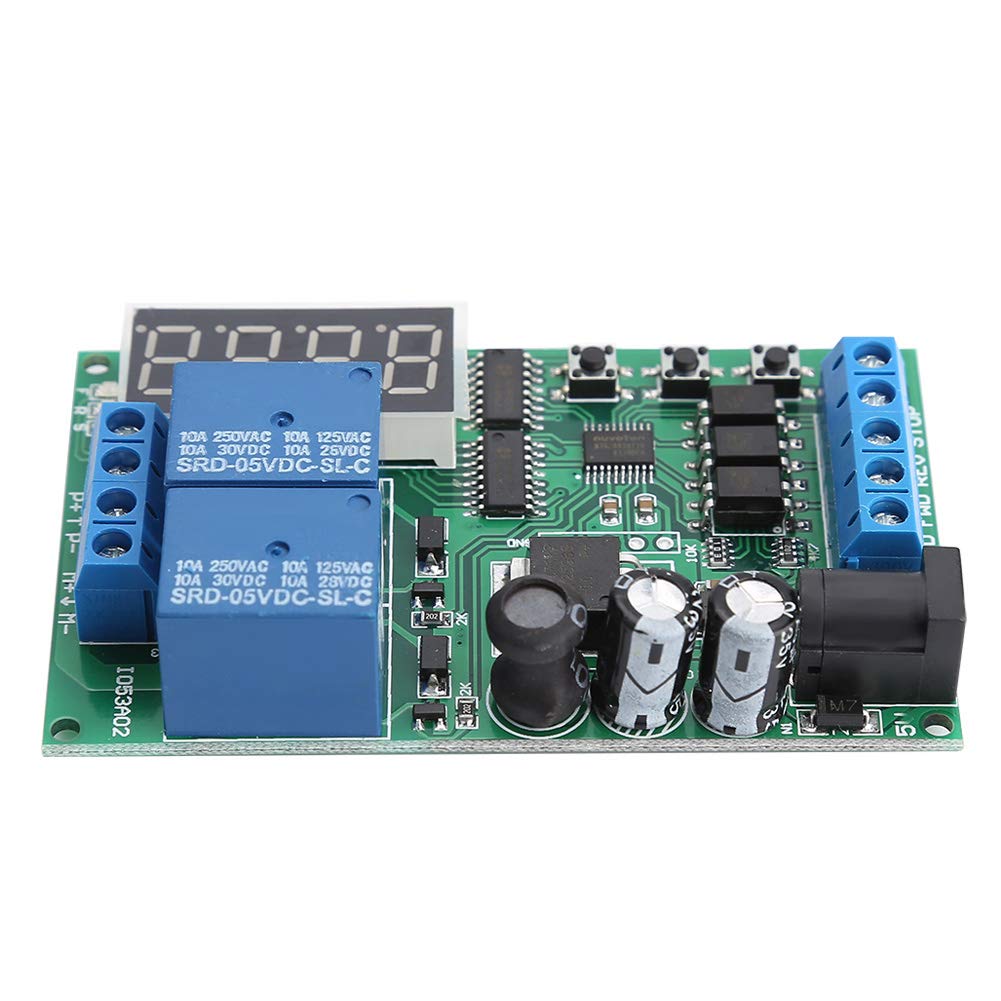

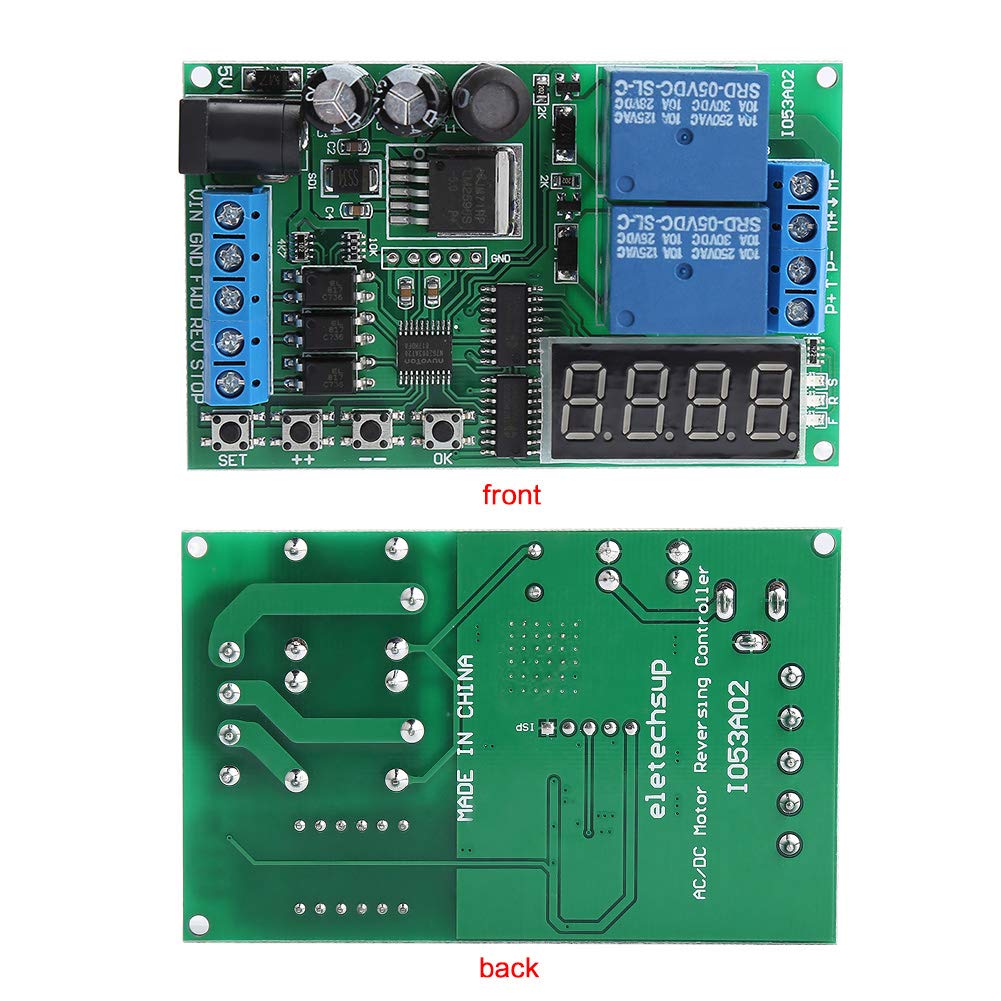

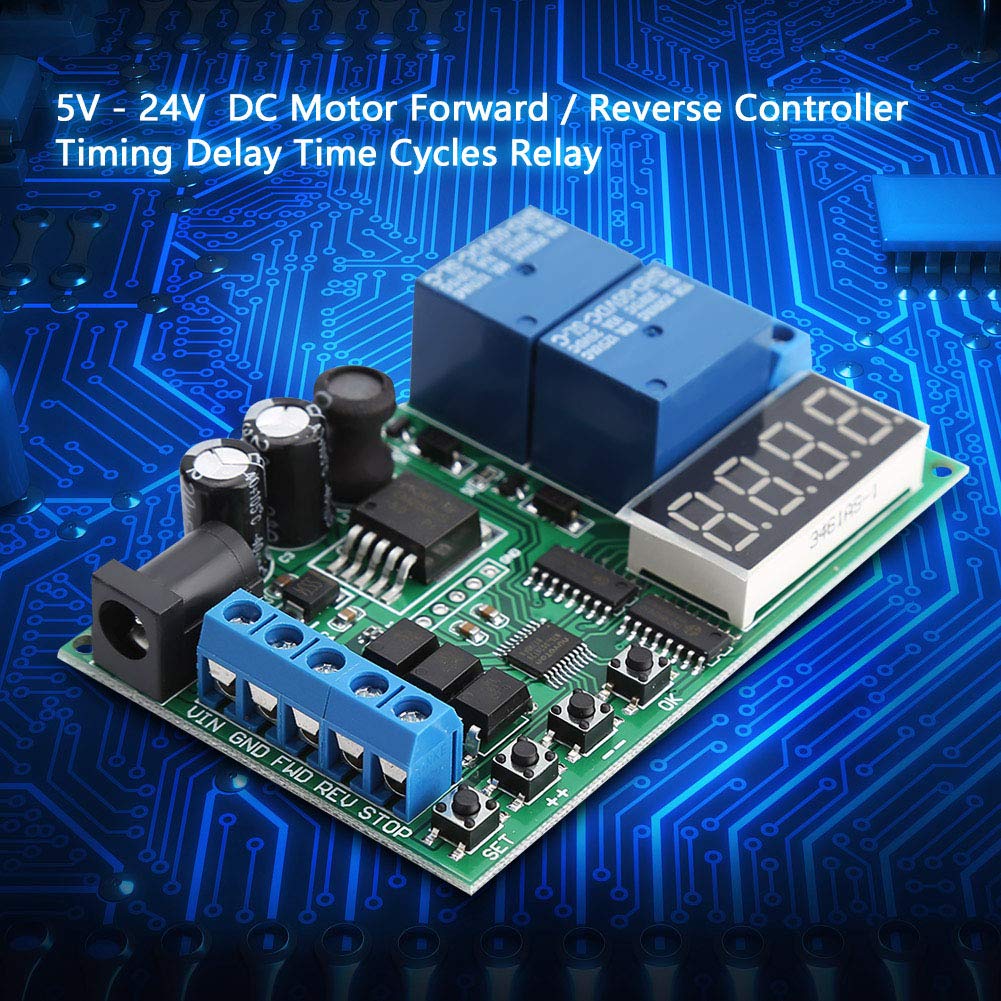

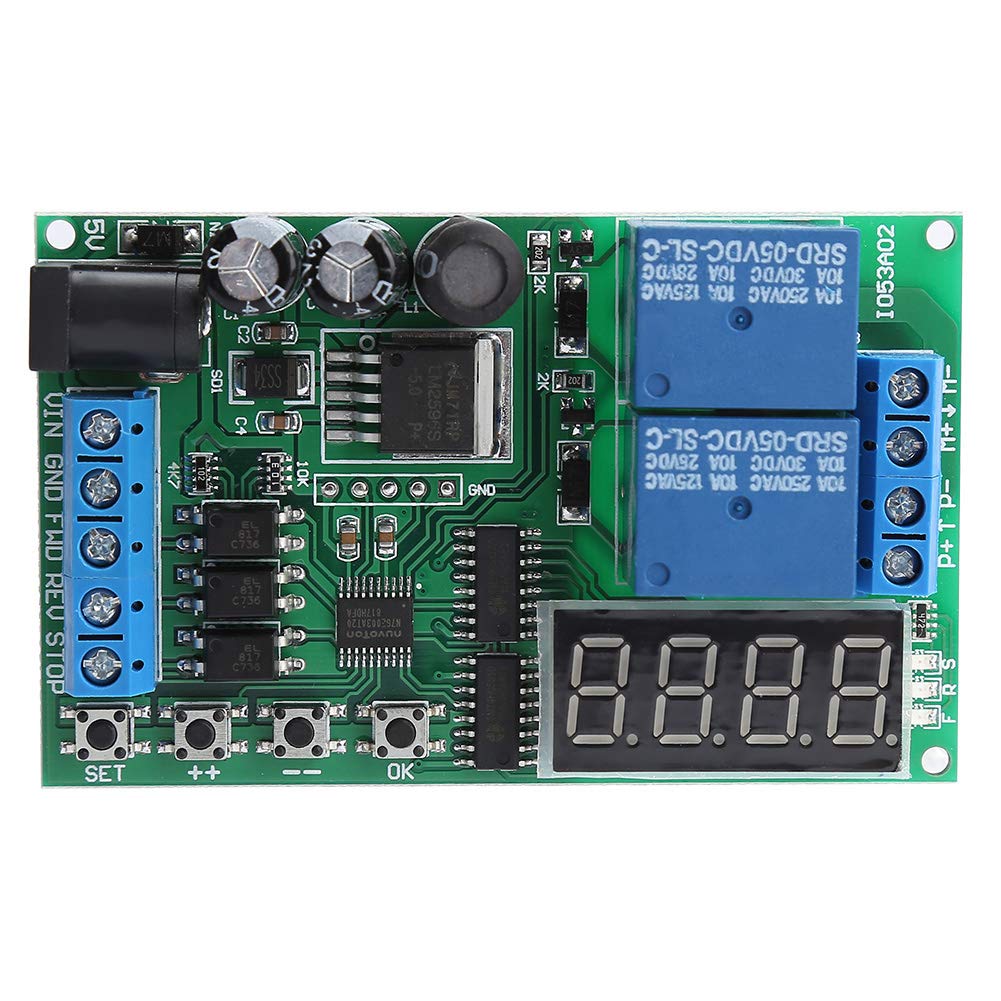

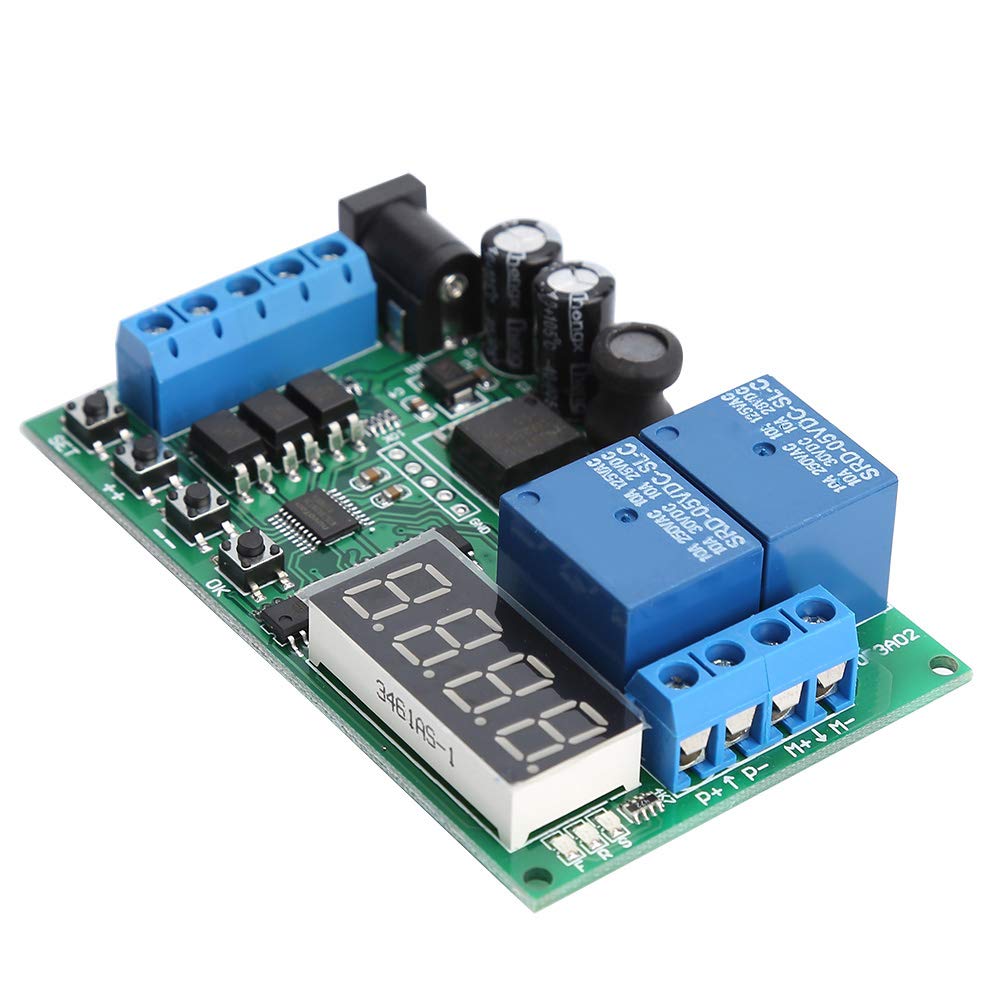

This is a multi-function DC/AC motor forward and reverse controller with multiple control modes. Many control functions can be derived through reasonable settings.
