Specification:Condition: 100% brand newModel: 3044196 Rotational speed stability: better than 0.25%Speed range: 1KHz to 6.5khzThermal stability: maximum +/-0.7%IDLE adjustment: 260+/-20Hz~ 85% of rated speedDROOP adjustment:Minimum position: 15Hz+/-6Hz/ change of load current per ampereMaximum position: 400Hz+/-75Hz/ ampere load current variationExternal speed regulation: +/- 200 Hz (external 1Kohm)AUX input sensitivity: 148Hz / 1V, +/-10Hz, impedance 1MohmEnvironment:Operating temperature range: - 40Celsius ~ 85CelsiusWorking humidity range: 95% MaxTemperature: - 55Celsius ~ 92CelsiusVibration: 20-100hz 500mm/Sec.Input power:Power supply voltage: 12V and 24V DC battery systemGround polarity: negativePower consumption: 40mAActuator continuous current: Minimum 1A; Maximum 4.5A Speed sensor signal: 2~120V RMSPackage List:1 * Generator Speed ControllerNote: The above performance parameters are measured at the operating frequency of 3800Hz.

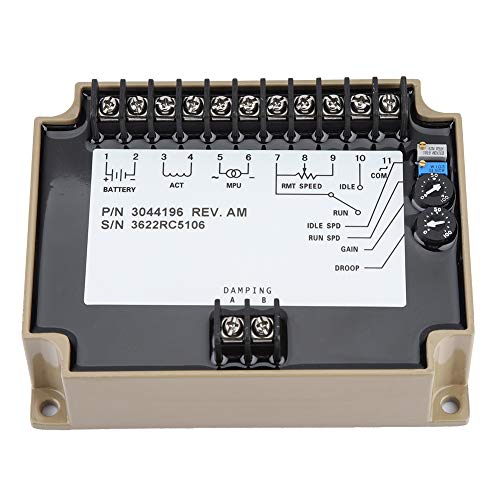

This 3044196 electronic speed controller with full closed-loop control technology, it is the moment to load changes with fast and accurate response to control engine speed, when connected to the matching EFC Series electric actuators and magnetic speed sensor signal , can be perfectly controlled engine.
In the design, it is easy to install and can be pre-adjustments, including adjusting the idle speed and work, to assist for input multiple machines or special purpose machines.
As well as to prevent reverse battery voltage, transient voltage pulse implementation of the short-circuit fault and security in case of loss of speed sensor signal or power supply and so on.
High quality 3044196 electronic speed controller, stable performance. Full closed-loop control technology.
Fast and accurate response to control engine speed It is easy to install and can be pre-adjustments. For input multiple machines or special purpose machines.
