56161140

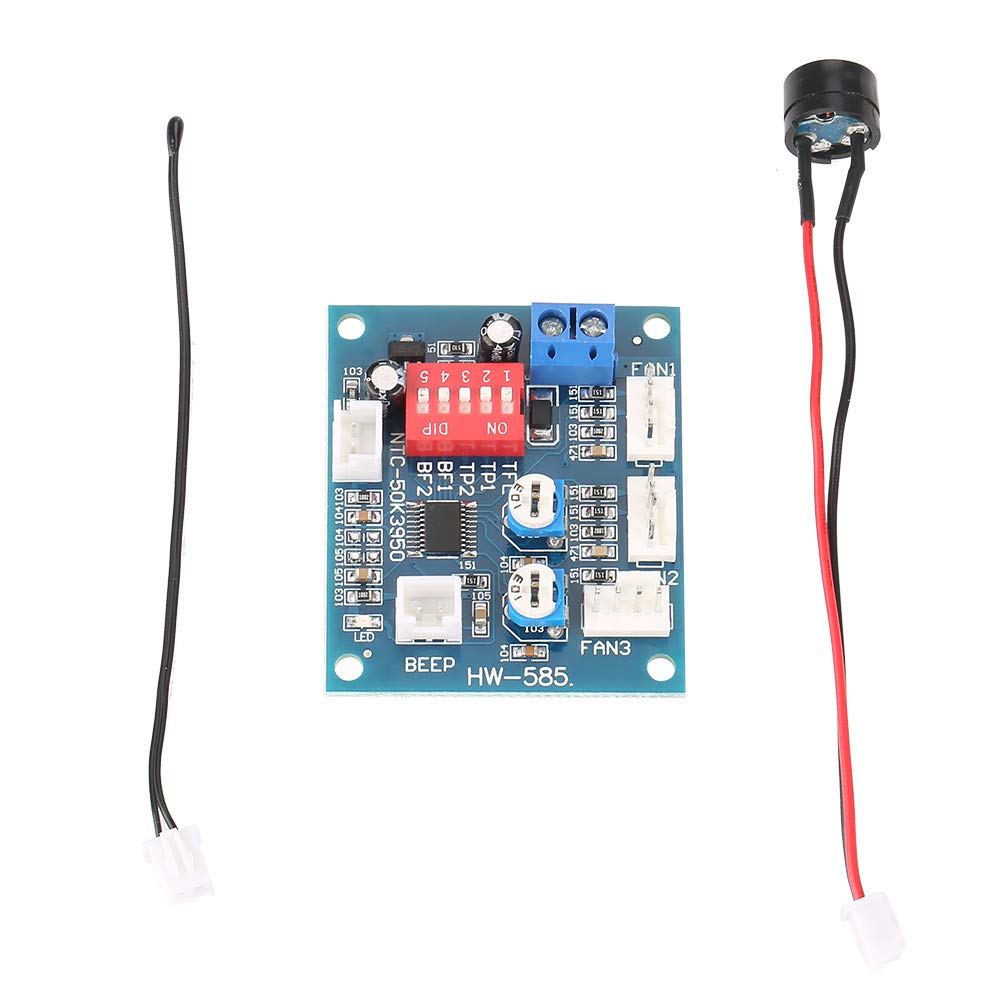

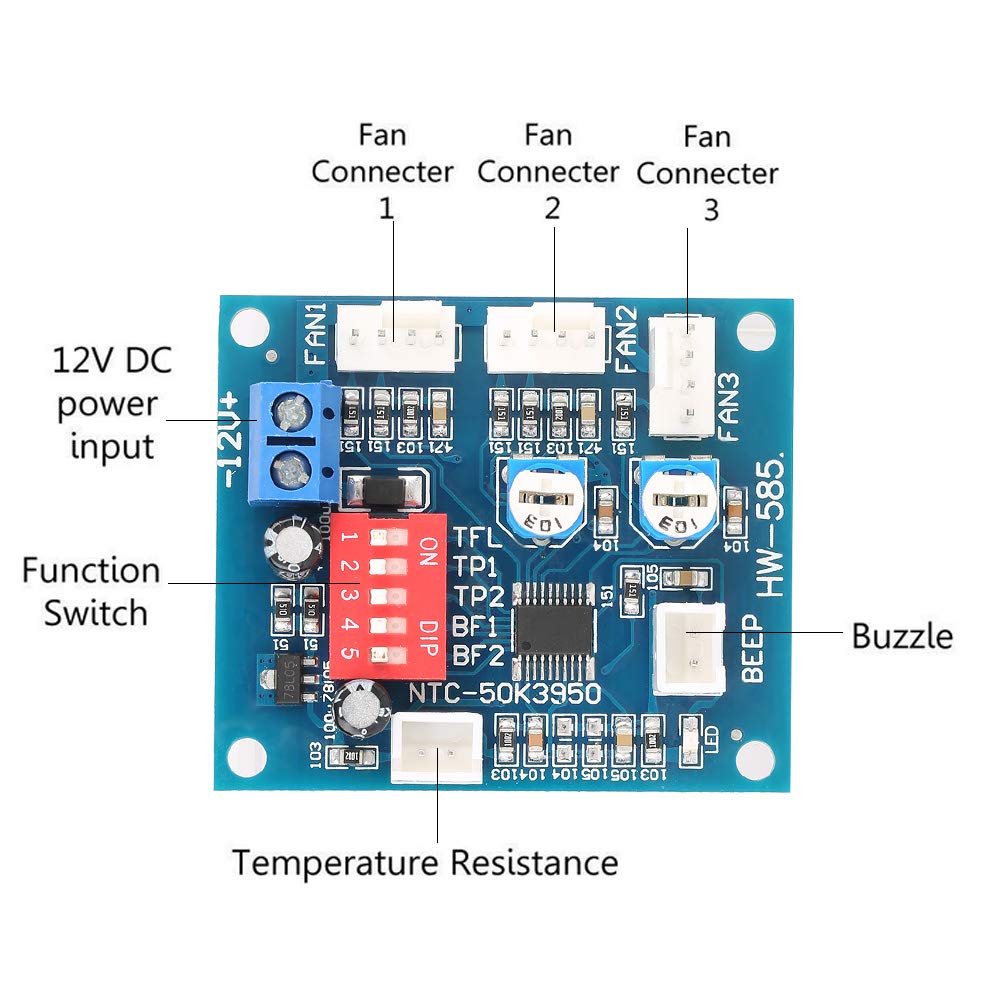

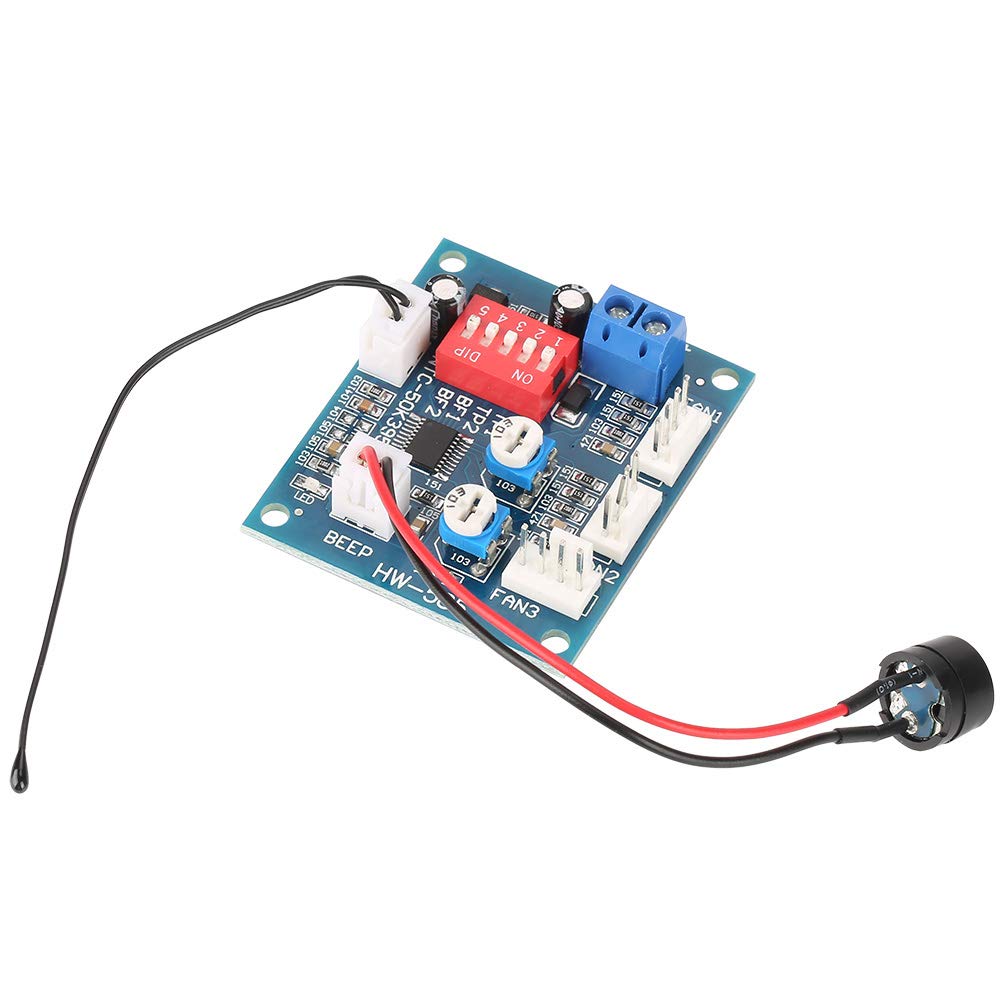

The controller only controls the speed of the all standard four-wire chassis fan and CPU fan for Intel.It integrates manual speed regulation and automatic temperature control and speed regulation function.When the corresponding open channel fan break down, the controller will alarm with sound and light (works with buzzle), alarm will automatically eliminated when the fan is rotated recovery.When the temperature lower than the accelerated temperature, then output at the minimum rotation speed; when it exceed over the full temperature, then always output at full speed. Specification Operating voltage: DC12V Circuit Load Capacity: Maximum current per output 4A, the bus currents up 9A Output Range The First Channel: 20%-100% or 40%-100% (TFL=ON) The Second Channel: 10% -100% The Third Channel: 10% -100% Size Board Size: Approx. 5.3*4.5cm/2*1.7inch Positioning Hole Position: 44*37mm/1.7*1.5inch Positioning Hole Diameter: 3mm PC Fan Speed Governor Package List: 1 x PWM Fan Speed Controller 1 x Buzzle 1 x Probe
When the temperature lower than the accelerated temperature, then output at the minimum rotation speed; when it exceed over the full temperature, then always output at full speed
Accurate temperature setting and control

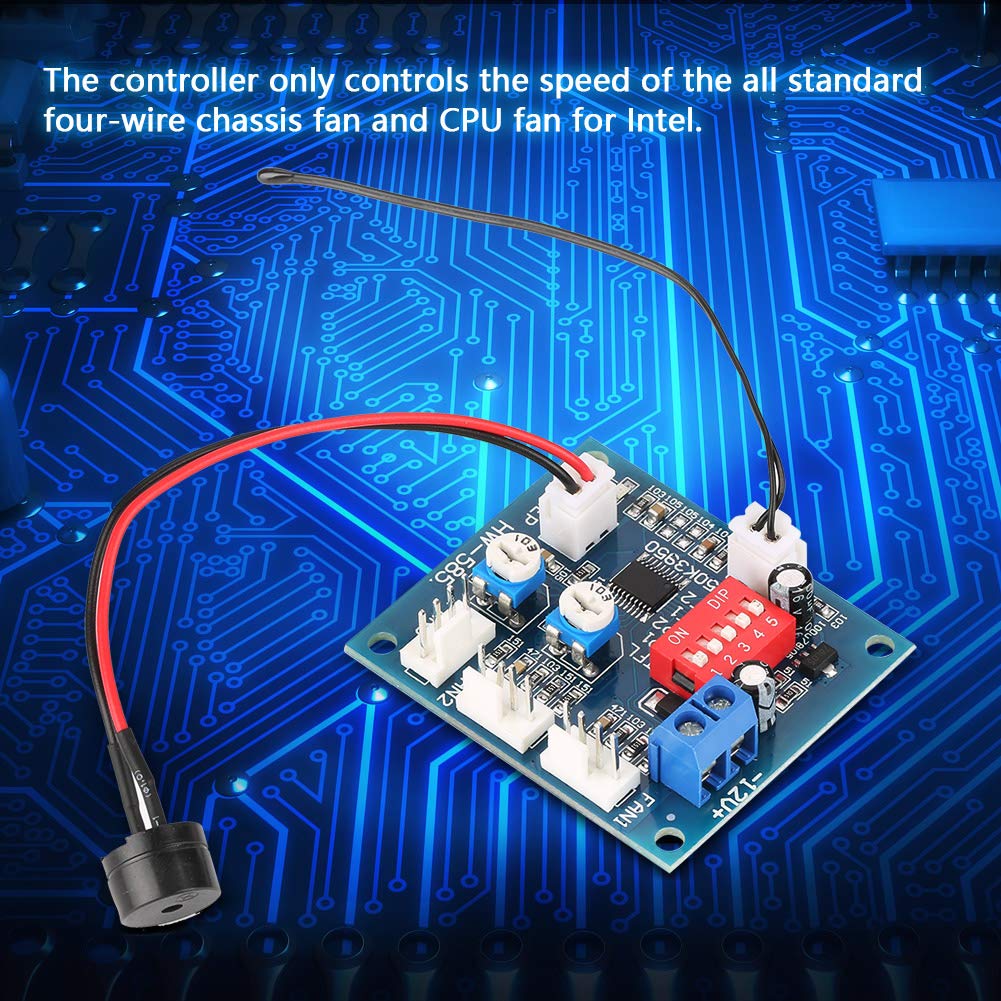

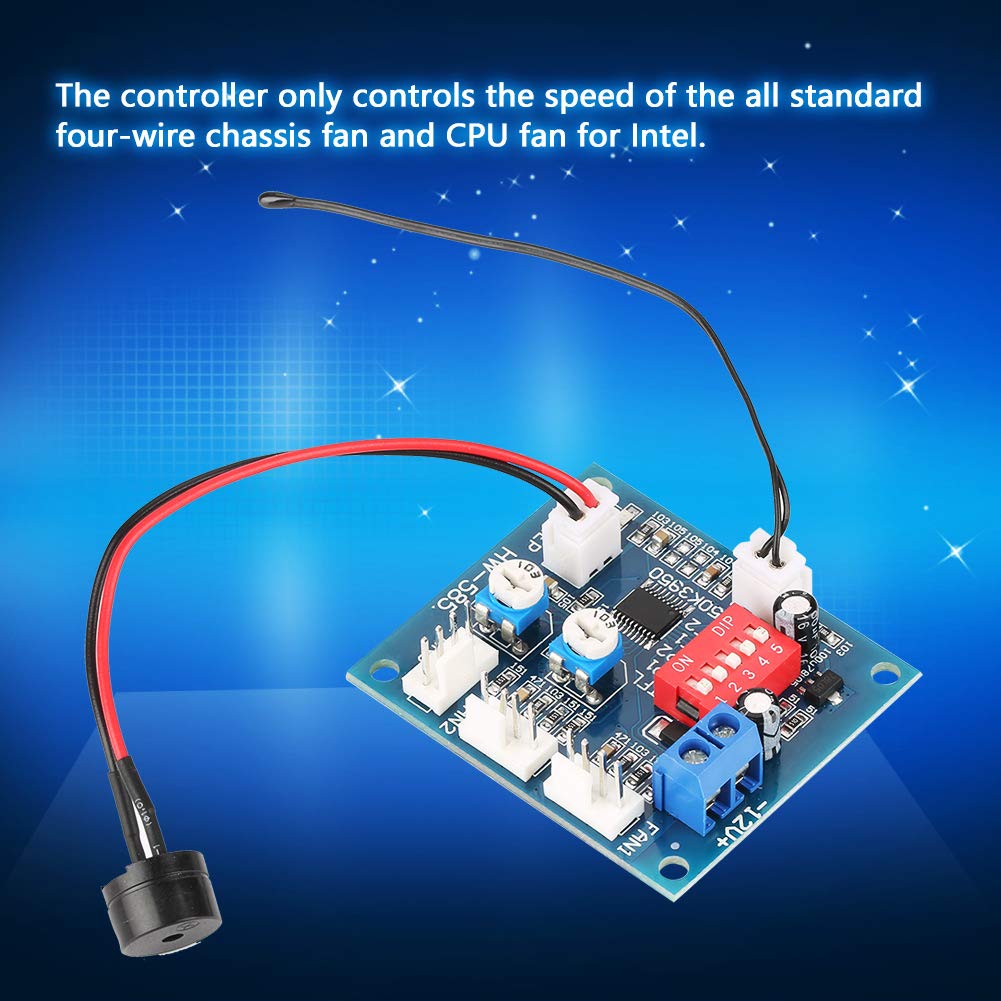

The controller only controls the speed of the all standard four-wire chassis fan and CPU fan for
When the corresponding open channel fan break down, the controller will alarm with sound and light (works with buzzle), alarm will automatically eliminated when the fan is rotated recovery
It integrates manual speed regulation and automatic temperature control and speed regulation function
