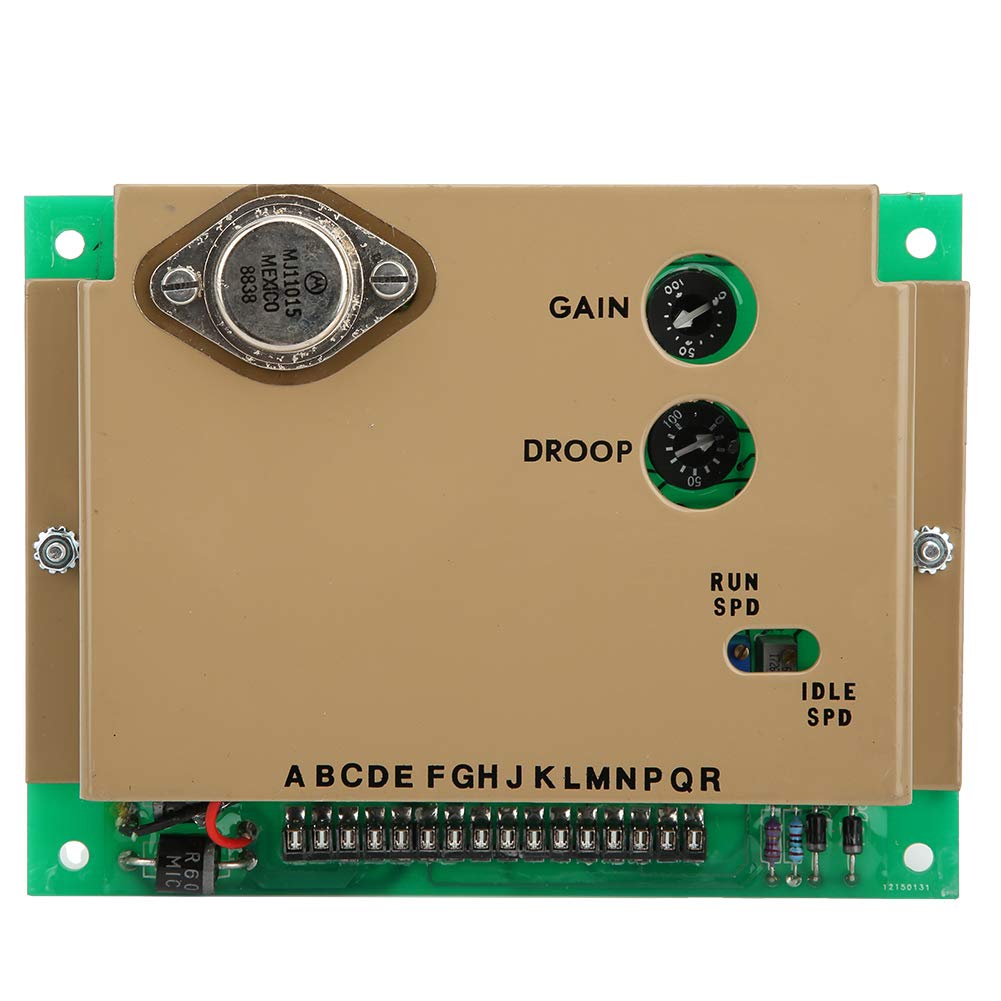

Closed Loop Motor Controller - Governor Speed Control Board for Cummins Generator Monitor | Reliable Engine Speed Regulation for Industrial & Marine Applications

Feature:1. The product is a full electronic closed loop control design2. Quick and accurate response to instantaneous load changes to control engine speed3. When connected to the matching normally open EFC series electronic actuator and magnetic speed sensor signals, the engine can be perfectly controlled4. The product can used for generator with stable performance5. Made of high quality material, durable and long service lifeSpec:Item Type: Governor Speed Control BoardSpeed Stability: Better than 0.25%Speed Range: 1KHz ~ 6.5KHzThermal Stability: Maximum, 0.7%IDLE Adjustment: 260 &; 20Hz ~ 85% of rated speedDROOP Adjustment: The minimum position is 15Hz & 6Hz / load current change per ampereMaximum Position: 400Hz & 75Hz / load current change per ampereExternal Speed Adjustment: 200Hz (external 1KΩ)AUX Input Sensitivity: 148Hz / 1V., &; 10HzImpedance: 1MΩOperating Temperature Range: -40 ℃ ~ 85 ℃Operating Humidity Range: Maximum 95%Storage Temperature: -55 ℃ ~ 92 ℃Vibration: 20-100HZ 500mm / Sec.Input Power: Power Supply Voltage: 24V DC battery systemGround Polarity: NegativePower Consumption: 40mAActuator Continuous Current: Minimum 1A; maximum 4.5ASpeed Sensor Signal: 2 ~ 120V RMSNote: The above performance parameters are measured at the working frequency of 3800Hz, for reference onlyPackage List:1 x Governor Speed Control Board
