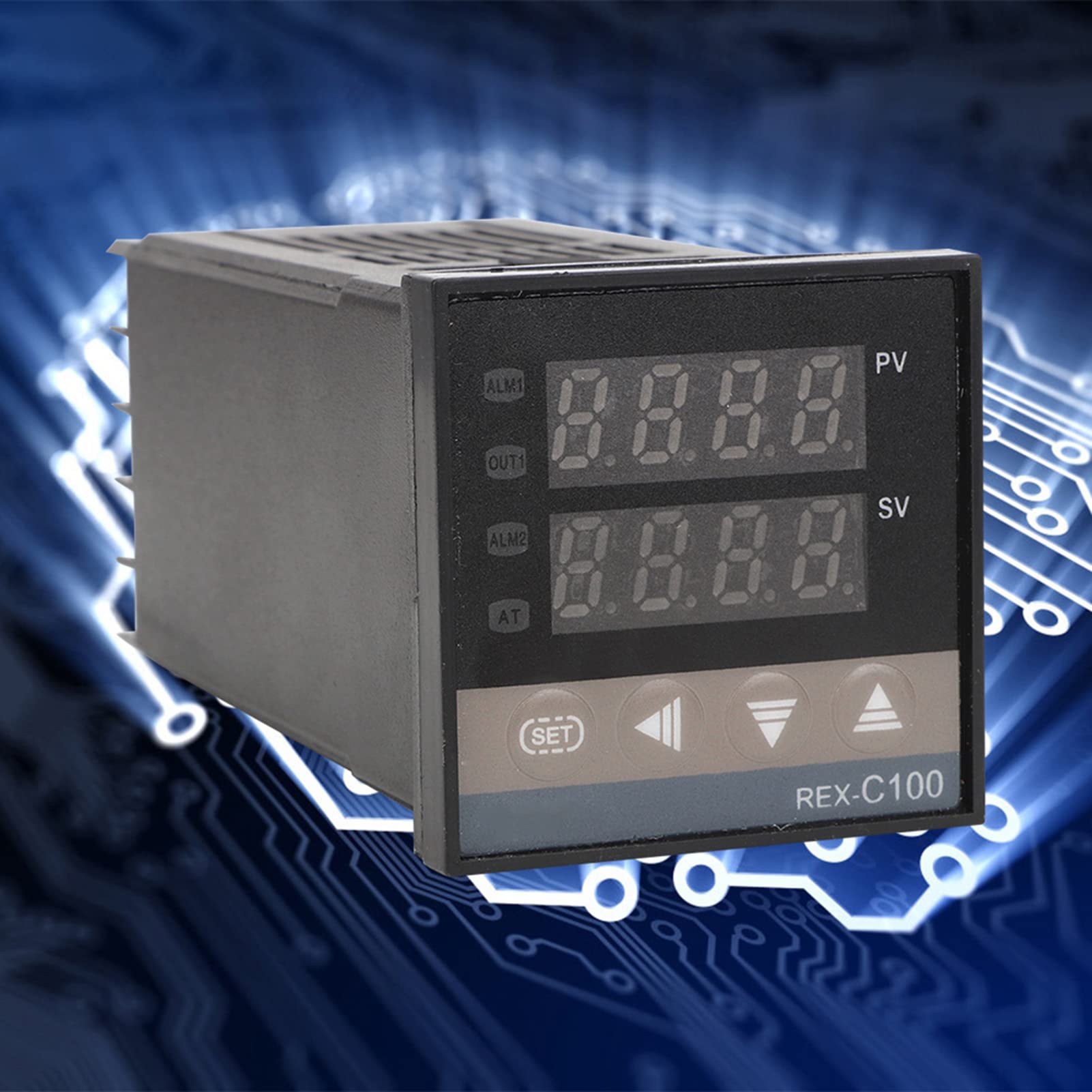

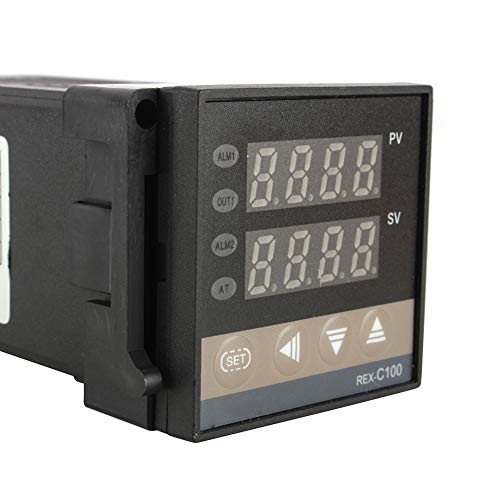

REX-C100 Digital PID Temperature Controller Kit with 0-400°C Range, 40A SSR & K-Type Thermocouple - Precise Temperature Control for Home Brewing, Sous Vide, 3D Printing & Industrial Applications

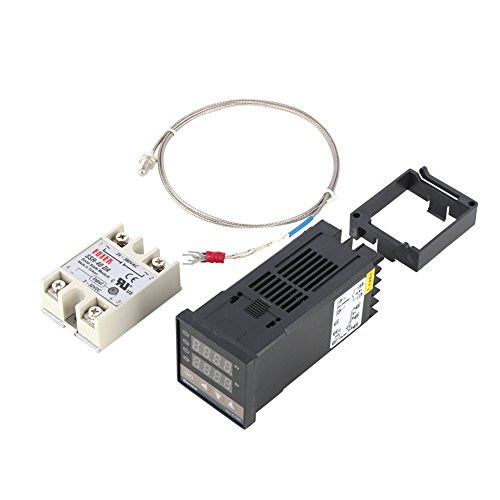

Description: PID Temperature Controller kit is for variety of industries or home projects heating or cooling applications. It comes with digital PID REX-C100 Temperature Controller + .40A SSR + K Thermocouple for your use. Specification: REX-C100 Temperature Controller 1.Measuring accuracy: ±0.5%FS 2.Cold-end compensation tolerance: ±2can be modified by software in 0~50 3.Resolution: 14 bit 4.Sampling cycle: 0.5 Sec 5. Power : AC 100-240V 50/60HZ 6.Process value (PV), Setting value (SV) 7.Output, self-tuning can be indicated by:LED 8.PIN control (including ON/OFF, step-type PID and continuous PID) 9.Self-tuning control 10.Relay output: capacity 250V AC 3A (resistive load) 11.Proportional band (P): 0~full range (ON/OFF control when set to 0) 12.Detective temperature range0 to 400 13.Insulation >50M ohm(500V DC) 14.Insulation : 1500V AC/min 15.Insulation : Power Consumption <10 VA 16.Service environment: 0~50 17.environment with no corrosive gas 30~85% RH K Thermocouple Probe Cable 1.Length: 1M 2.Sensor diameter:4.5mm 3.Temperature rang :0-400 4.Internal Insulation: Fiberglass 5.External Shielding: Insulated Shielding .40A SSR 1.Output Current:40A 2.Input Voltage:DC 3-32V 3.Output Voltage:24-380V AC 4.Output Voltage Range:Standard Type Package Content: 1 x PID Controller 1 x SSR-40DA 1 x K Thermocouple Sensor
