30A DC 12-80V Digital LED Display Motor Speed Controller for Electric Scooters, Bikes, and DIY Projects - PWM Adjustable Regulator for Smooth Acceleration Control

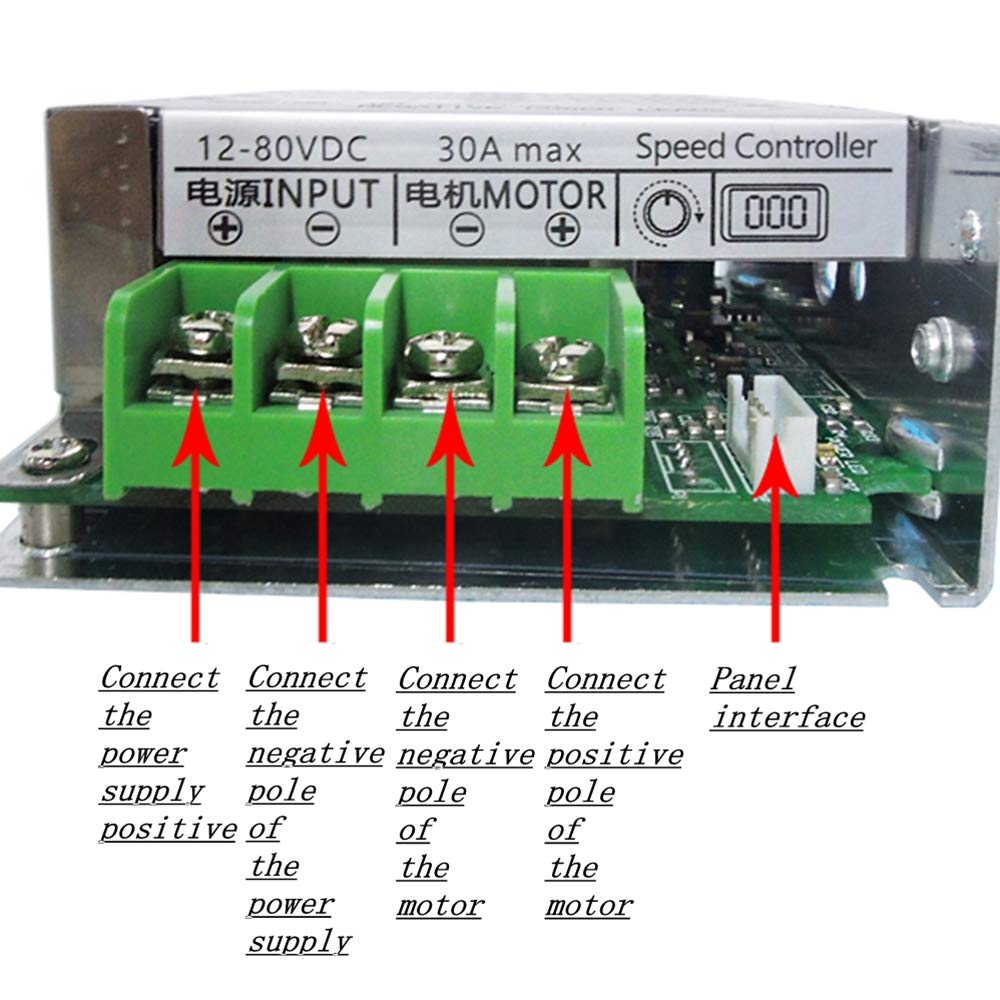

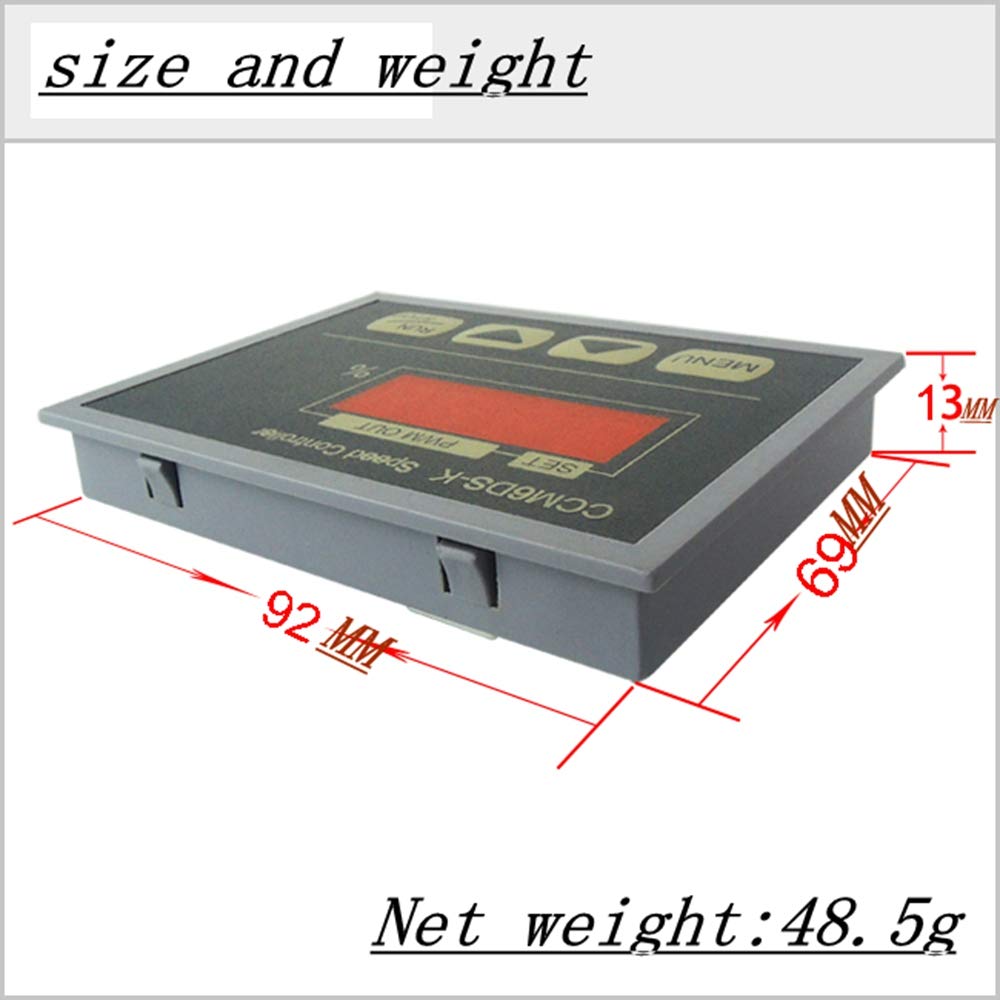

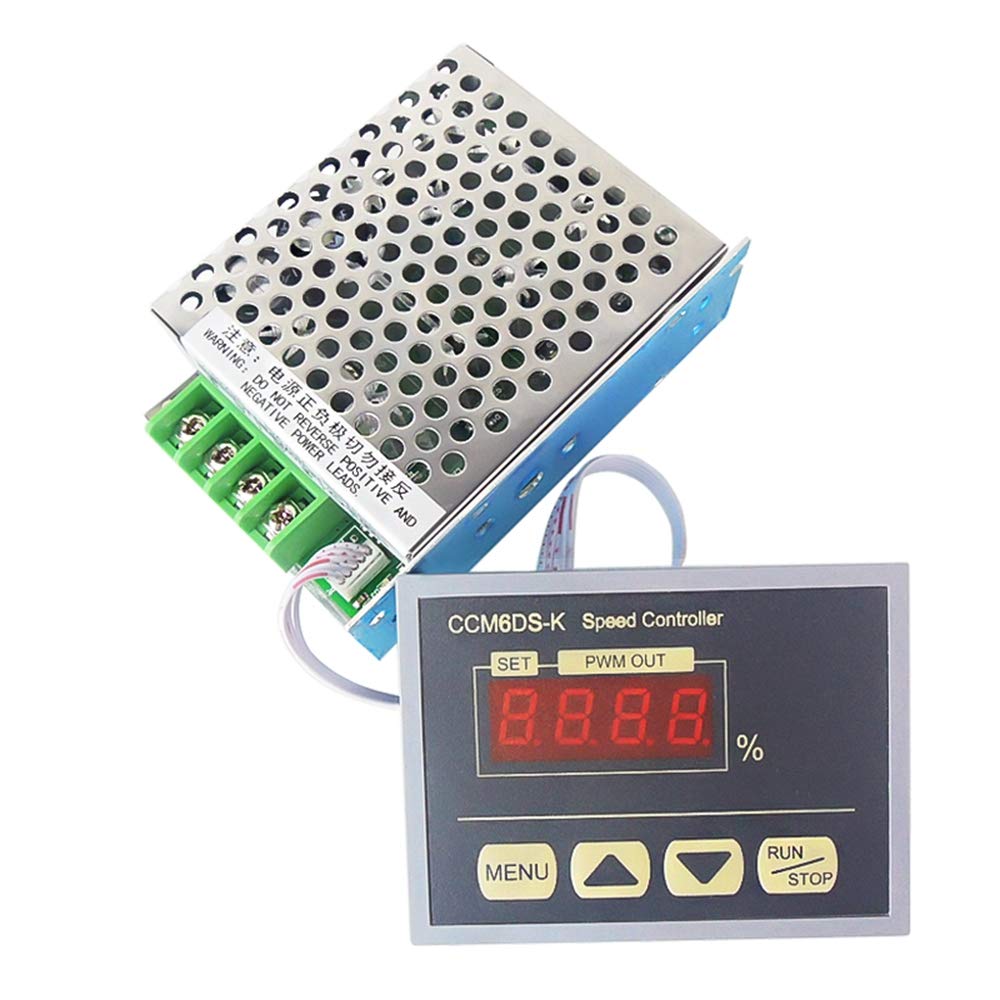

Parameter: Model: CCM6DS-K The output voltage is about 0-100% of the input voltage Input voltage: DC12V-80V Control power: Suggestions: 12V-in 250W, 24V-in 350W, 48V-in 500W Maximum current: 30A Speed ​​​​adjustment range: 0%-100% Size: 110mm*77mm*36mm (controller) 92 mm* 69mm* 13mm (panel) Weight: 190g PWM frequency: 21kHz Package include: 1x A set of digital display controller Function settings: SET 1 (set slow start): "000"-"100", the slow start to 100% speed time is adjustable between 0-10.0 seconds, the default is 1 second. SET 2 (set slow stop): "000"-"100", the slow stop time is adjustable between 0-10.0 seconds, the default is 1 second. SET 3 (set minimum speed): "000"-"080", the minimum speed is adjustable between 0-80%, and is less than the maximum speed setting value, the default is 0. SET 4 (set maximum speed): "000"-"100", the maximum speed is adjustable between 0-100%, and is greater than the minimum speed setting value,the default is 100%. SET 5 (setting the speed adjustment value): "001", "002", "005", "010", "015", "020", "025", each time you press the plus and minus key, the speed will change by 1%, 2%, 5%, 10%, 15%, 20%, 25%. Note： The positive and negative poles of the power supply of the governor cannot be connected reversely, as the reverse connection will directly damage the governor!
