Automatic Generator Start Controller Module DC20D - Micro-Computer Controlled Genset Controller with LED Display for Diesel/Gasoline Engines | Perfect for Backup Power, Emergency Use & Off-Grid Applications

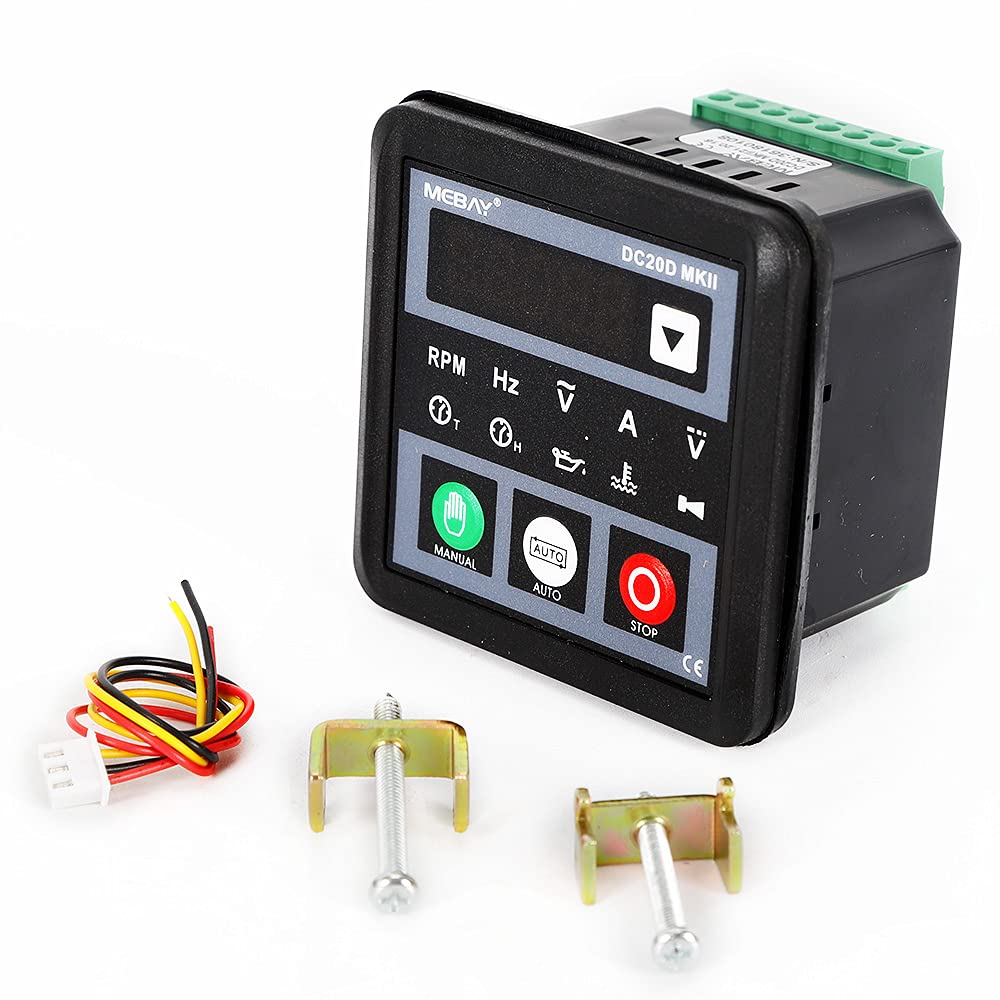

Micro-Computer Control Module Package includes: 1 x DC20D MKII Genset Controller2 x Mounting Screws1 x Cable DC20D MKII Genset Controller Electronic Generator Controller Module Features: Micro-computer ControlMan/Auto Start/Stop5 Units LED tube DisplayLED and Fault Alarm Code IndicationTwo Group of programmed Relay outputApplication for various kinds of Engine by self-settingWith RS485 communication port Manual Start/Stop Auto Start/Stop Preheat Control Auto Idle Control Choke Control E.S.T Control Panel and Display Page Change - Change the display page. - Under display mode, Confirm the change under edition mode. Manual - Pressing this key will set the module into manual mode. - Under display mode, parts of the page can move down. - Under edition mode, to move the digit or decrease the numbers. Auto - Pressing this key will set the module into auto mode. - Under display mode, parts of the page can move up. - Under edition mode, to move the digit or increase the numbers. Stop/Reset/Revert - Can stop generator under manual/auto mode; - Can reset shutdown alarm - During stop procession, pressing this key again can stop generator immediately. - Pressing this key can cancel the setting and back to upper class under edition. - Parameters to be saved under value checking page. Specifications: DC supply DC 8-36 V Power consumption MAX 3 W Measuring frequency 10-70 Hz AC input AC 50-380 V Current measurement range 0-2000 A Speed sensor frequency 30-9999 Hz Protection Level IP54 when waterproof rubber gasket is added between controller and its panel Operation temperature -20°F~160°F Storage condition -40°F~185°F Panel Chinese/English Optional Product size 3'' x 3'' x 2'' Panel cut-out 2.6'' x 2.6'' Package size 7'' x 4'' x 3'' Package weight 0.6 lbs Relay Output Fuel output MAX 5A Start output MAX 5A Configurable output 1 MAX 2.5A Configurable output 2 MAX 2.5A Excitation output MAX 1A Typical Diagram for DC20D MKII Genset Controller Warning: Please don’t move battery during running status or it may cause the controller broken.
