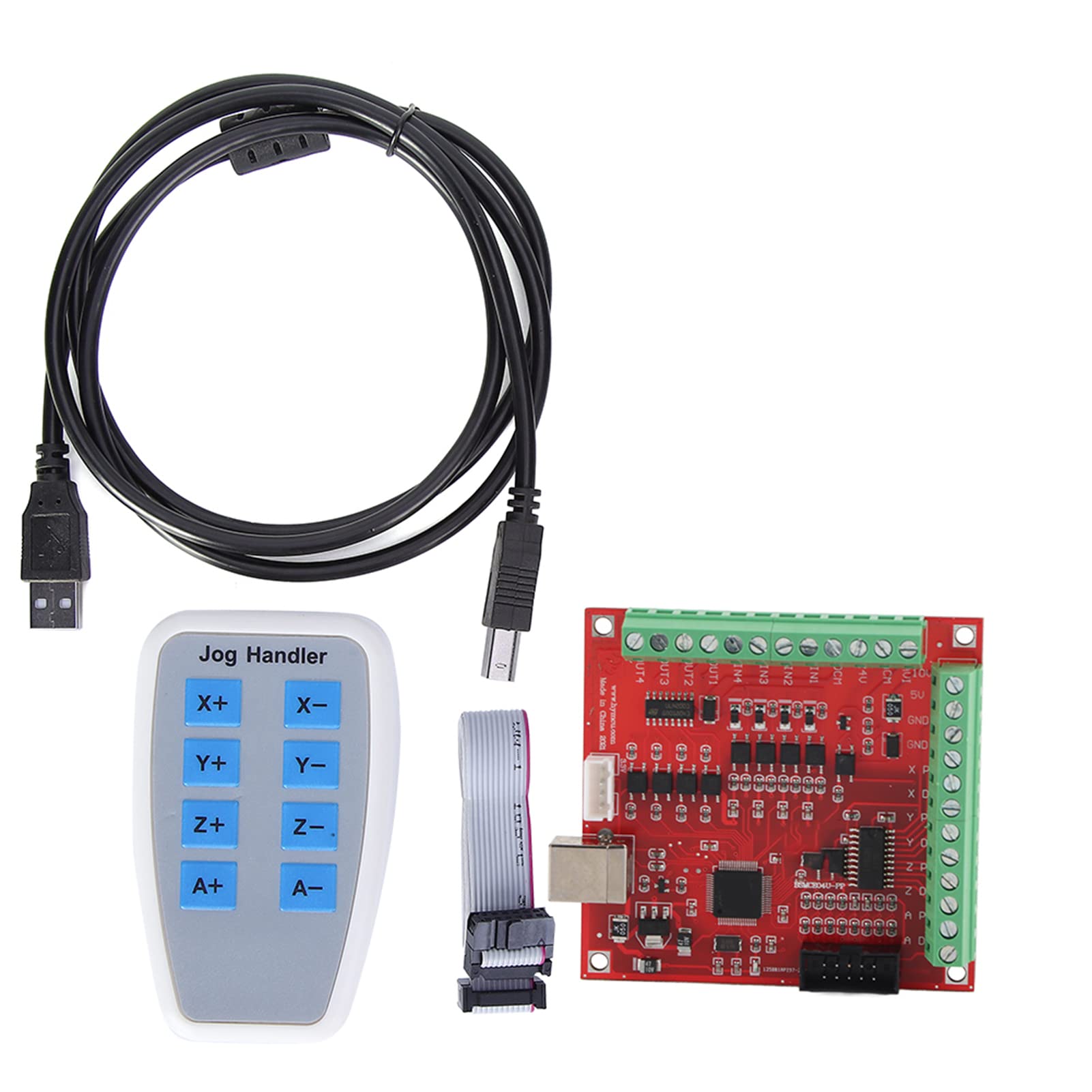

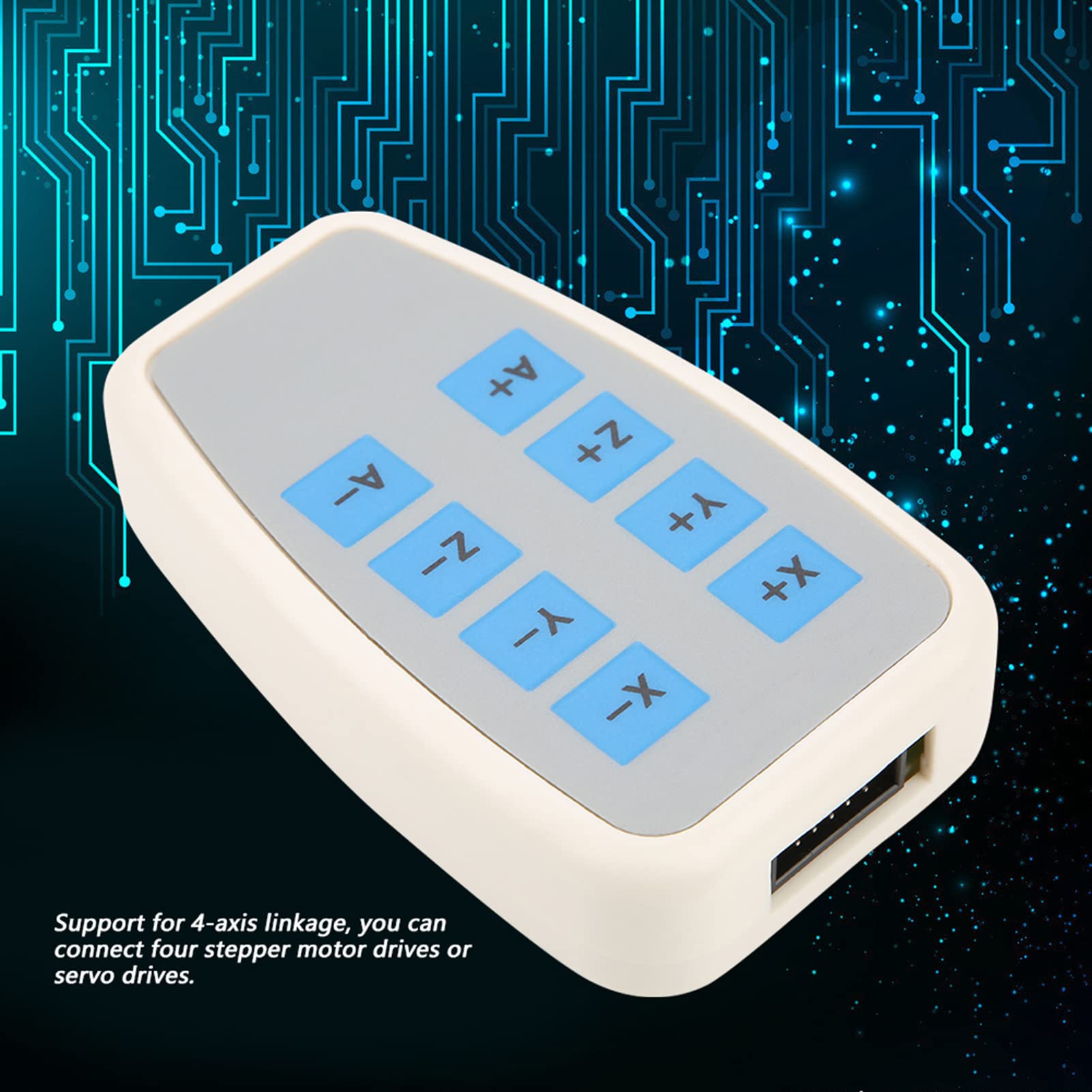

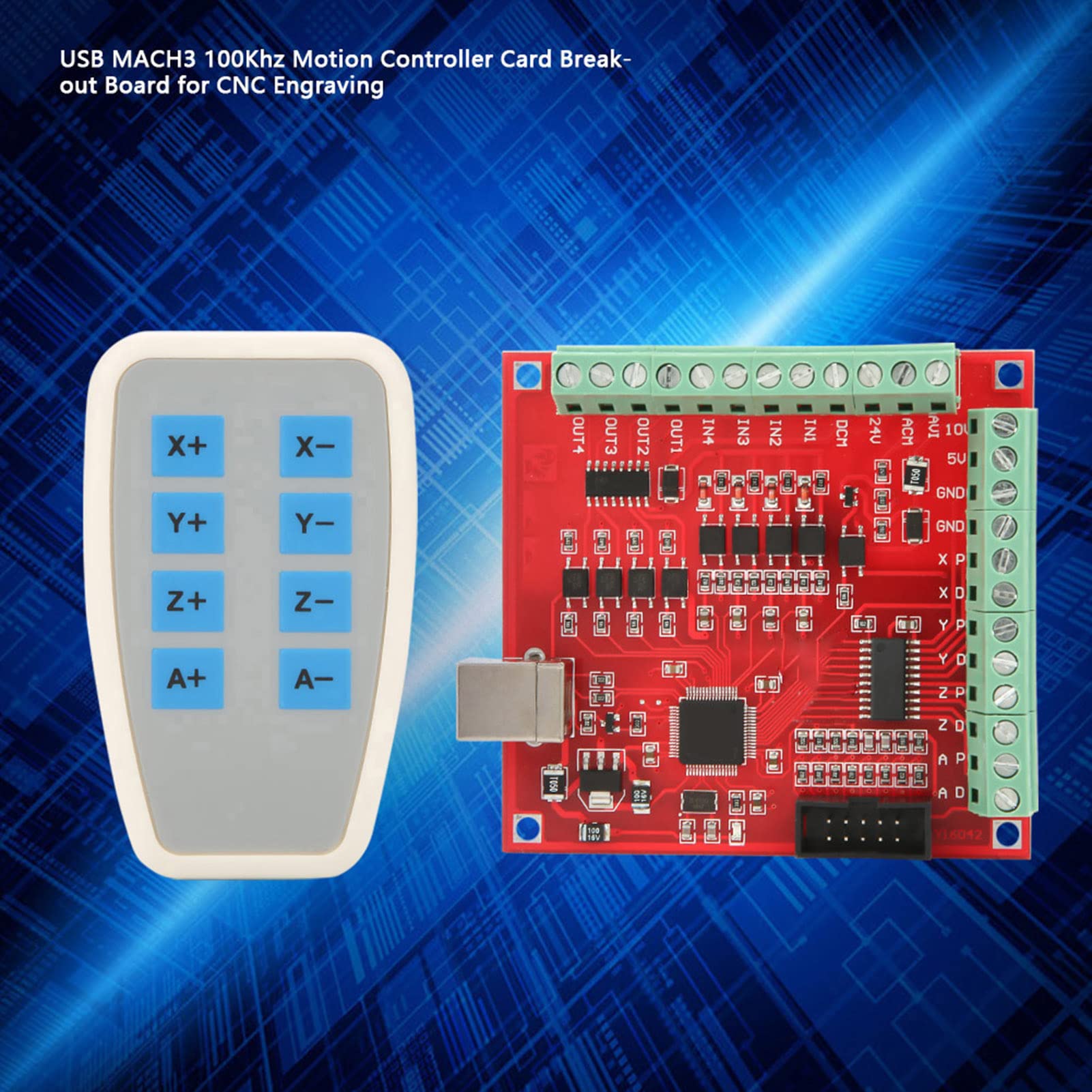

USB CNC Controller Board - 100Khz Mach3 Motion Control Card with Jog Handler for Engraving & Milling Machines | Perfect for DIY CNC Routers, Woodworking, Metal Cutting, and 3D Engraving Projects

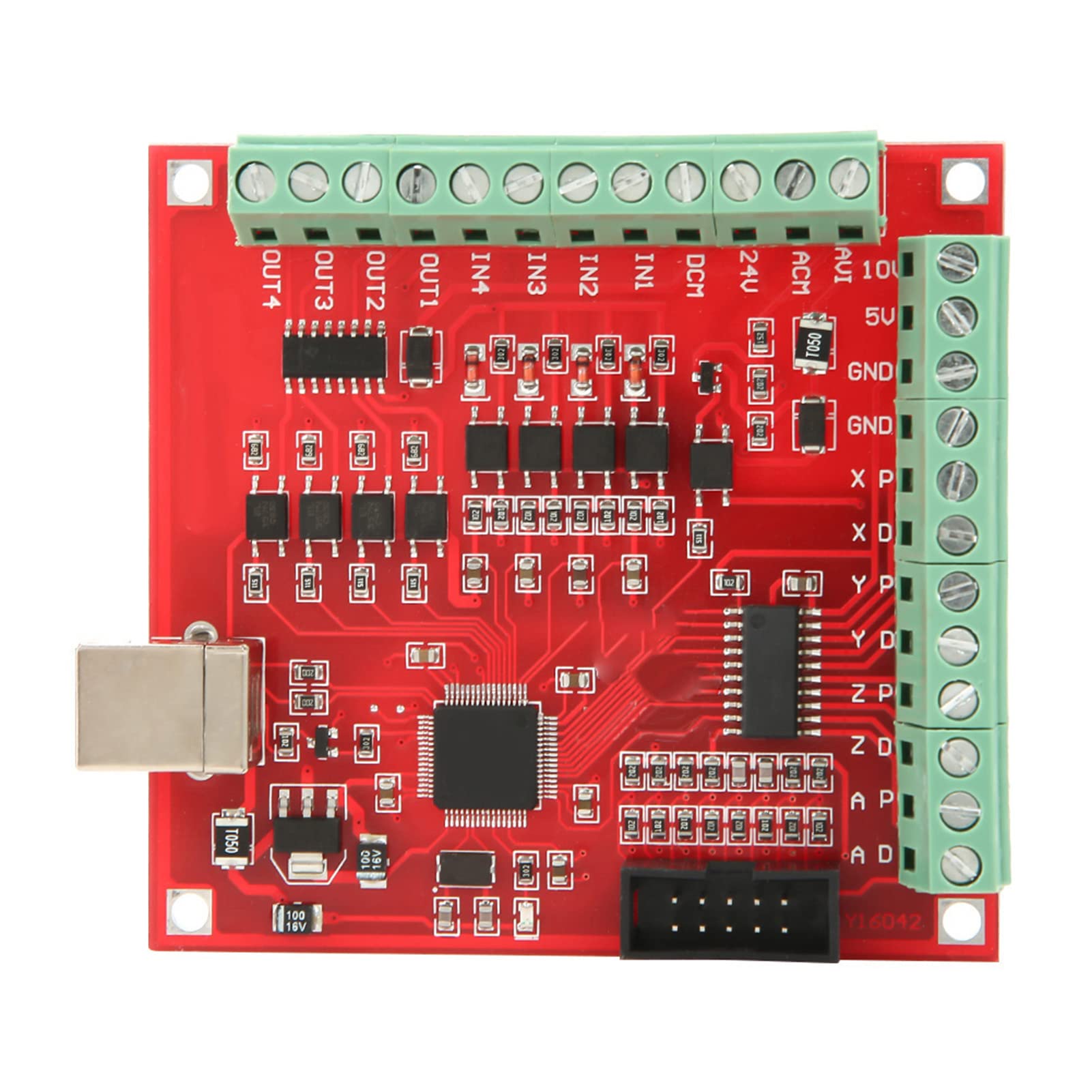

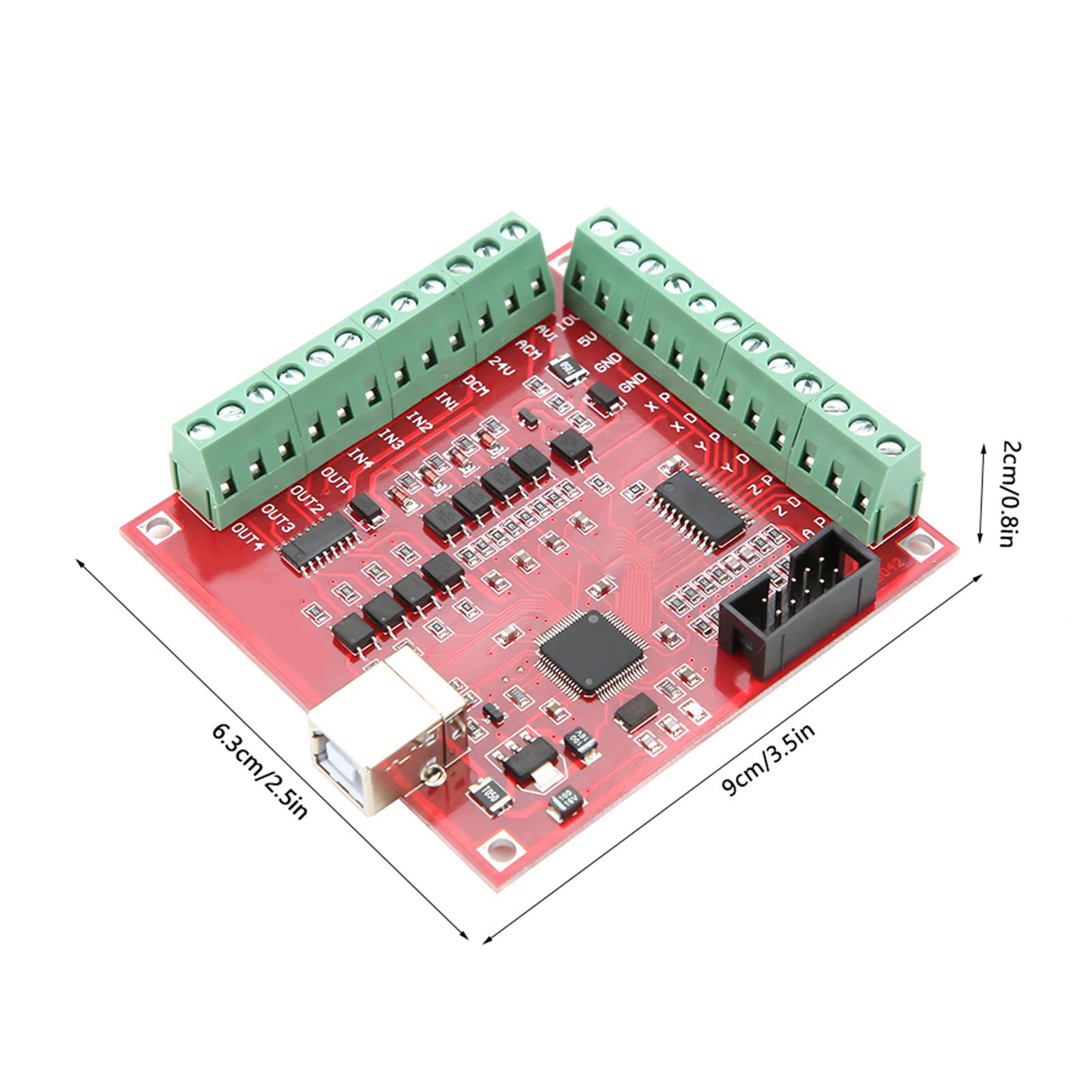

USB Interface Controller CNC Controller Board Mach 3 CNC Controller Card Board CNC Motion Control 100Khz with Jog Handler Features: Maximum step-pulse frequency is 100KHz, which is suitable for the servo or stepping motor. Support for limit switch. Support for 4-axis linkage, you can stepper motor drives or servo drives. Features: Support for 4-axis linkage, you can stepper motor drives or servo drives. Maximum step-pulse frequency is 100KHz, which is suitable for the servo or stepping motor. Support automatic probe tool. Support emergency input. Support for limit switch. Support for connecting electronic hand wheel. Need use external 24V DC power supply to isolate USB and external port, and to make the system more stable. Have 0-10V output port, you can use software to control the spindle motor speed. 4 general-purpose inputs, you can connect the limit switch, estop switch, probe switch, back to zero and other device. 4 general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps and other device. Status LED, indicate connection status on the board. Specification: Interface board size: 9*6.3*2cm/3.5*2.5*0.8in Jog handler size: 10*6*2.5cm/3.9*2.4*1in Weight: Approx.200g/7.1oz Package list: 1 x USB CNC Controller Card 1 x Jog Handler 1 x USB cable 1 x CD 1 x Connecting Cable
