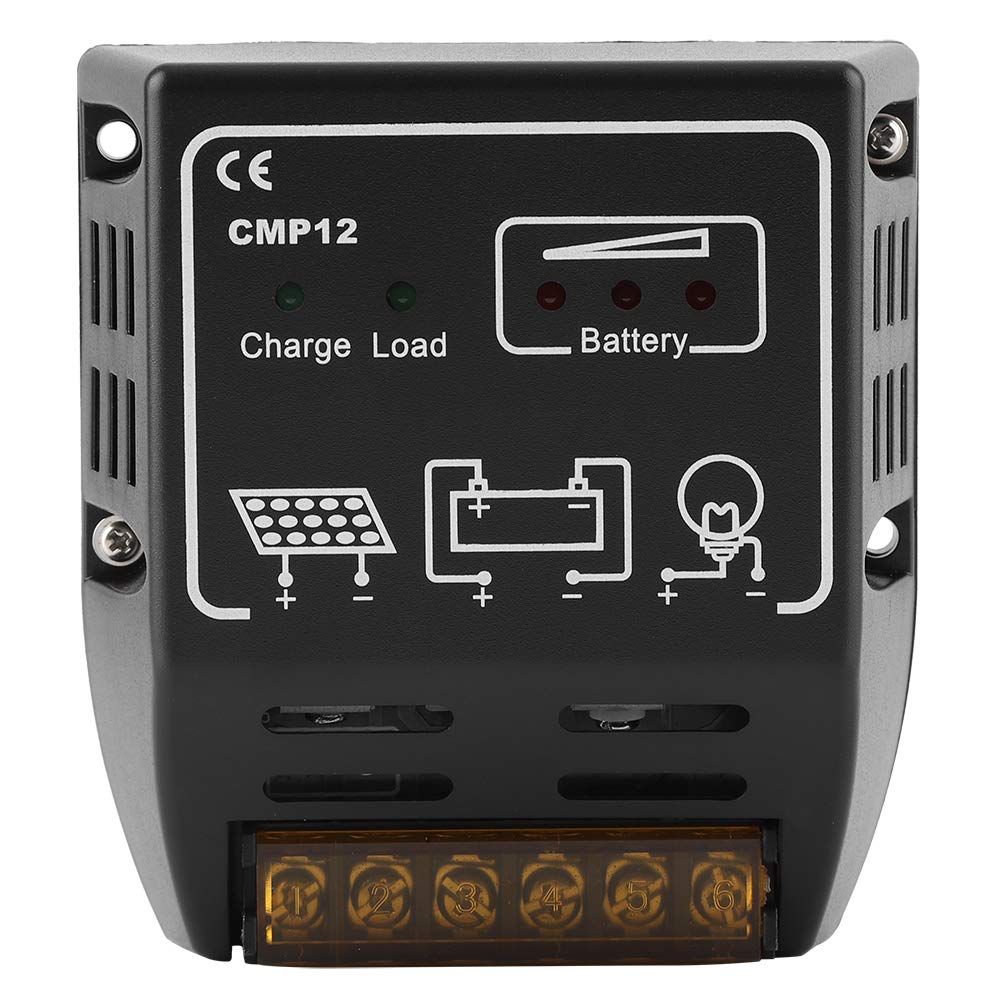

Specification: Material: PS Color: Black System Voltage: DC12V Self-consuming: 10MA Rated Charge Current: 10A Rated Load Current: 10A Overcharge Protection: 14.4V/28.8V Overdischarge Protection: 10.8V/21.6V Load over-voltage Protection: 16.5V/34V Maximum Open Circuit Voltage for Solar Cell: 25V/36V Working Temperature: -20℃ - 50℃ Size: Approx. 10.2 * 9.5 * 3.7cm / 4.01 * 3.74 * 1.45inch Weight: Approx. 142g Package List: 1 x Controller 1 x Manual Instruction: 1. Open the cover of controller, install the controller according to the manual. 2. Connect the battery's positive and negative electrodes to the 3rd and 4th terminals from left of the controller. *If the led indicator (LOAD) turns on, which means this step is right, and keep on 3. Connect the solar panel's positive and negative electrodes to the 1st and 2nd terminals from left of the controller. 4. Connect the device's positive and negative electrodes to the 5th and 6th terminals from left of the controller. * Charging indicator on, means it's in charge, flashing means in floating charge. If it's off, which means stop charge. * Load indicator on means it has output and supports working, off is not. Note: 1. Please confirm the rated voltage of the solar panel, battery and device before connection. The rated voltage of the three shall be the same, and they are all 6V, 12V or 24V. 2. The rated current of solar panel and load shall not be greater than the rated current of the controller.
Protection: Intelligent solar controller has short-circuit protection, overload protection, overcharge and over-discharge protection, low-voltage protection, anti-reverse charge, anti-reverse connection protection, reliable and safe to use.
Parameter: Solar charge photovoltaic controller size is 10.2x9.5x3.7cm/4.01x3.74 x1.45inch,system voltage is DC12V,self-consuming is 10mA,rated charge current is 10A,rated load current is 10A,overcharge protection is 14.4V/28.8V,overdischarge protection is 10.8V/21.6V,load over-voltage protection is 16.5V/34V and the maximum open circuit voltage for solar cell is 25V/36V.
Photovoltaic Type Design: DC12V 10A Automatic identification battery regulator can quickly store the electricity power generated by solar panel to storage battery.
Application: Small solar system battery regulator can offer reasonable power supply allocation to various devices, compatible with many solar panels, battery, devices.It is widely applicable to many uses, garden, yard, path, etc.
Reliable Quality: The manufacture and production of the product follow strict product quality control standards, the product performance is stable and the quality is reliable, you can use it for a long time with confidence.
