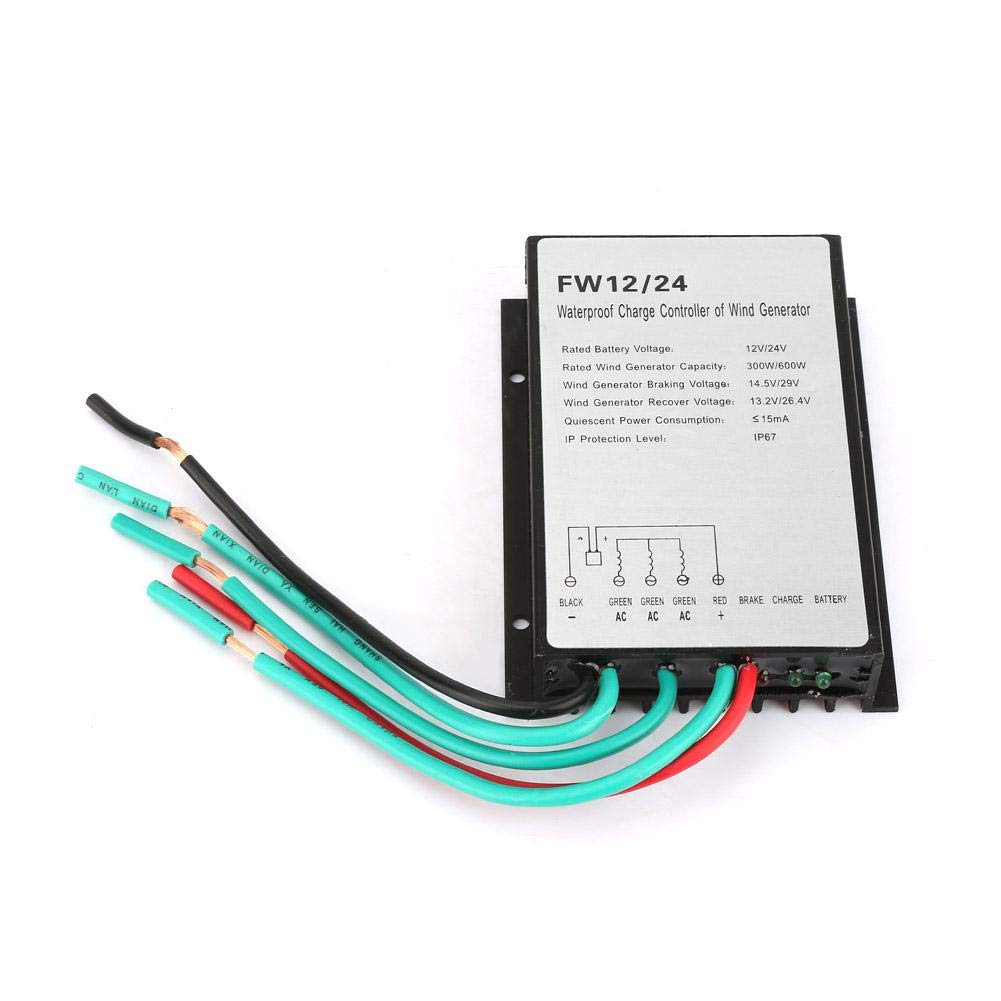

Specification: Condition: 100% Brand New Model: FW12/24 Battery Rated Voltage: 12/24V Wind Turbine Rated Power: 300W/600W Brake Start Voltage (Factory Value): 14.5V/29V Brake Recovery Voltage (Factory Value): 13.2V/26.4V Display Mode: Led (Light-Emitting Diode Display) Working Temperature And Humidity Range: -35℃-+75℃ Quiescent Current: ≤15 mA Protection Level: IP67 Weight: Approx. 255g / 9.0oz Size: Approx. 100 * 87 * 28mm / 3.9 * 3.4 * 1.1in Wiring: 1. Connect the positive and negative terminals of the battery to the positive (red) and negative (black) terminals of the battery. 2. Connect the three-phase output voltage of the wind turbine to the three-phase input (green line) terminal of the controller fan. Package List: 1 * Wind Turbine Controller Note: 1. Verify that the wind turbine output voltage matches the rated voltage of the battery. 2. Wiring sequence: first connect the positive and negative poles of the battery, then connect the three-phase voltage output of the fan. Please connect the battery and wind turbine to the controller in strict accordance with the instructions. If the polarity is reversed or the wrong position is connected, the system will work abnormally and even cause the controller to be completely damaged.
WIND TURBINE CONTROL The Wind Turbine Controller through controlling the wind turbine to the battery automatically, and with the wind energy powered, the battery can no longer need external power supply for charger.
INTEGRATED MODULE DESIGN The rectifier and brake circuit part of the Wind Turbine Controller has adopted integrated module design, which can greatly save the circuit space and you don’t have to worry about the working performance of this Wind Turbine Generator.
IP67 PROTECTION The Wind Turbine Controller supports various of protection, includes fully waterproof and fully dust-proof protection, which has occupied level IP67, and will be a great helper to you.
HIGH QUALITY MATERIAL This Wind Turbine Controller has taken the material of plastic and electronic component, which is 100% brand new and has high quality assurance, and we hope this Wind Turbine Controller will meet your basic need.
AUTOMATICALLY CONTROL When the battery is full, the fan is braked by the internal circuit automatic control, and when the battery voltage drops to the recovery voltage, the fan resumes charging the battery, thus protecting the fan and the battery.
