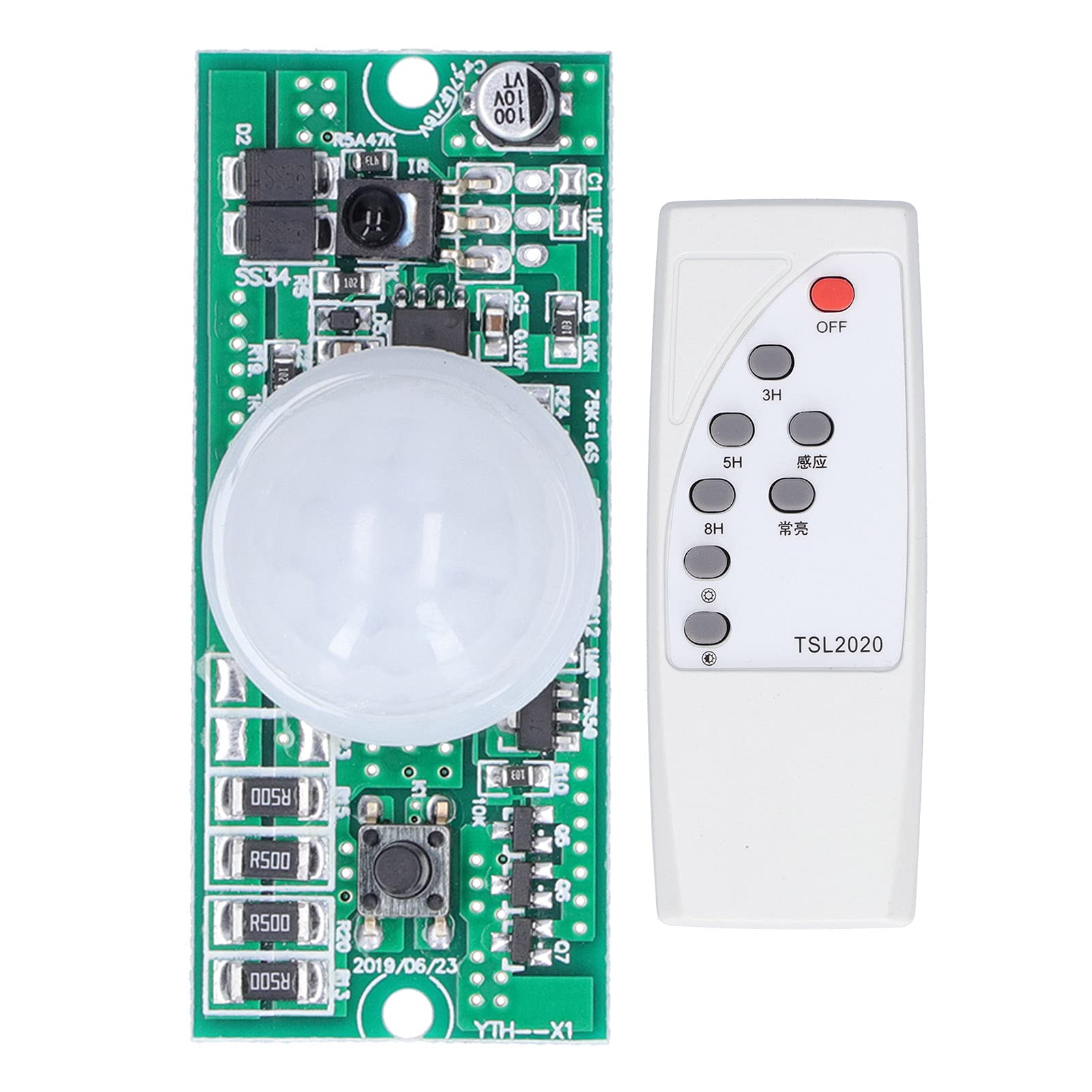

How to Use: 1. Please connect the battery first and then the LED light. Finally, connect the solar panel 2. When using 3.2V or 3.7V lithium battery, please install a protective board on the battery to prevent overcharge and overdischarge Specification: Item Type: Solar Circuit Board Material: Glass fiber+ABS Rated Battery Voltage: 3.2V lithium iron phosphate battery / 3.7V ternary lithium battery (the battery needs to have its own protection board) Remote Control Power Supply: 2 x AAA batteries (Battery Not Included) Solar Panel Input Power: 5V-6V<20W Lamp Output Power: 3V<90W Induction Mode: Induction high light + low light and long light. Induction Time: About 10 seconds Sensing Distance: 5-10 m / 16.4-32.8 ft Switch: 3 gears (induction mode/constant light mode/light off) Remote Control Function: Dimming brightness / dimming light mode The Induction Mode: Human body induction highlights for about 10 seconds, turns to low brightness and long brightness Weight: Approx. 36g / 1.3oz Circuit Board Size: Approx. 26.8x63.8mm / 1.1x2.5in Remote Control Size: Approx. 40x105mm / 1.6x4.1in Package List: 1 x Circuit Board 1 x Infrared Sensing Hood 1 x Remote Control (Battery Not Included) 1 x Manual Note: This control panel does not have overcharge and overdischarge protection. The battery needs to have its own protection board to connect the battery. Compatible with 3.2V lithium iron phosphate battery and 3.7V lithium battery. It can be used for solar integrated street lamp modification or maintenance.
【Broad Application】Solar light control module can be used as solar landscape lights, solar warning lights, solar street lights, solar flashing lights, solar street signs, solar guide signs and solar monitoring systems, etc
【Adjustable】The brightness of the solar circuit board can be adjusted as required, and the timing can be remotely controlled. The operation is very easy, and can save time and power
【Premium Material】The body induction solar circuit board is made of high‑quality glass fiber and ABS materials, not easy to damage, good performance, and long service life
【Intelligent control】With human body induction, the induction distance is about 5‑10 meters, can provide you with greater convenience. Human body induction highlights for about 10 seconds, turns to low brightness and long brightness
【Remote controlled timing】The solar circuit board is compact design, easy to carry and store, can provide stable performance. with remote control function, can dimming brightness and light mode
