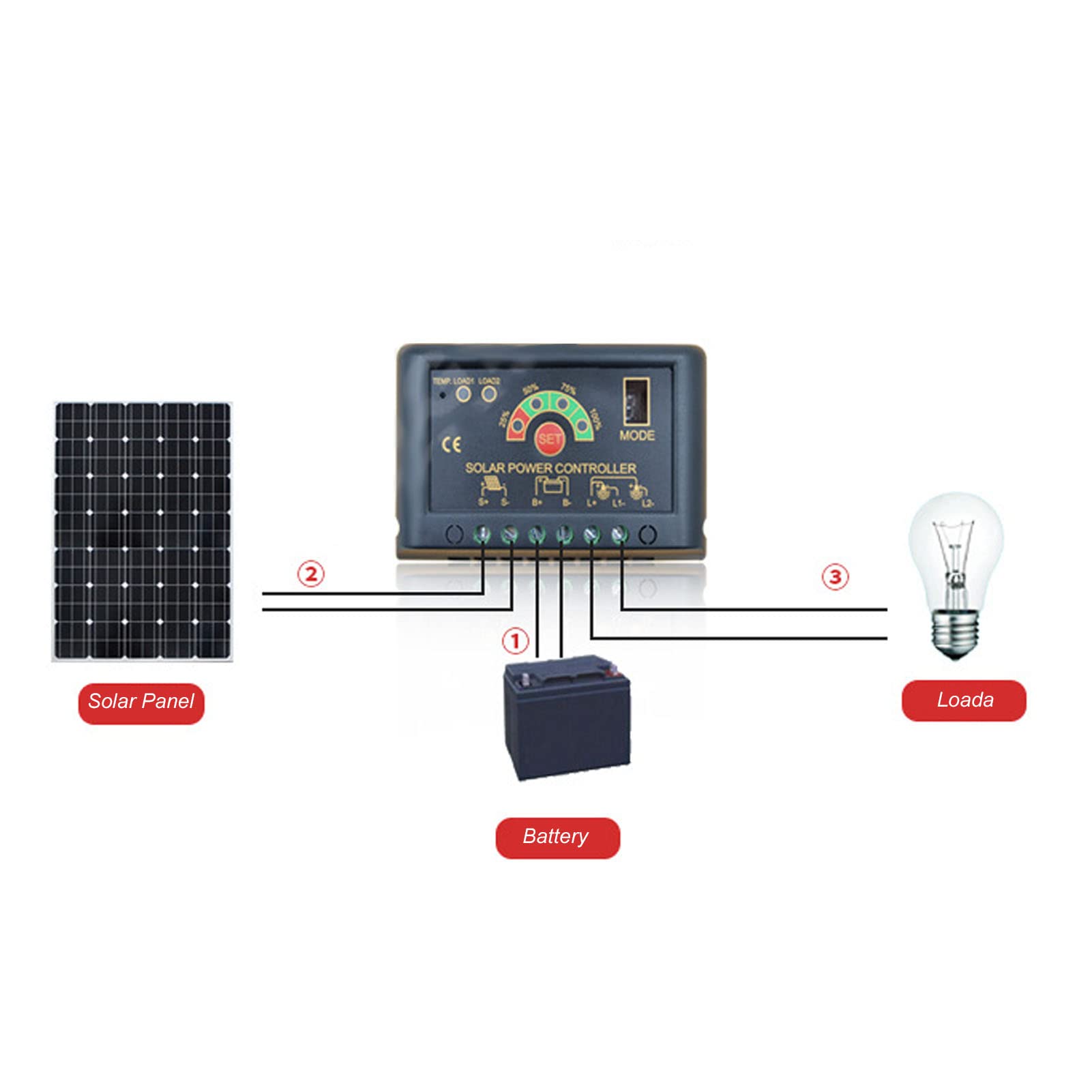

Specification:Item Type: Solar ControllerMaterial: ABSModel: JN-SUsage: Widely used in solar, wind and other new energy power generation systemBasic Parameter:Voltage Range: 12V 24VCurrent: 15APower: 180W 360WHow to Use:Wiring Method (All wiring must ensure power off connection):1. Correct connect the battery first, positive pole is on the left, the digital tube shows the word 1 or 2, 1 means entering the 12V system, 2 means entering the 24V system, after a few seconds, the LOAD light is on, and the battery indicator light is on.(Street light type: LOAD will be off during the day, and will be off for undervoltage and overvoltage). Otherwise check the wiring.2. Correct connect the battery board, positive pole is on the left, the power indicator light starts to race, and enters the charging state. Otherwise check the wiring.3. Finally, correct connect the load (bulb in the picture), positive pole is on the left, the light bulb . (Street light type: the light bulb will be off during the day, and will be off for undervoltage and overvoltage). Otherwise check the wiring. 3 items must be connected in order, otherwise the controller will be damaged.Installed in a dry and ventilated place.Package List:1 xSolar ControllerNote:Fixing screw specification: M3x10.
Wide Compatibility This solar controller is widely compatible with a variety of battery types, such as ternary lithium batteries, lithium iron , etc.
Application This solar controller is widely used in new energy power generation systems such as solar energy and wind energy
Multiple This solar charging controller has multi of reverse connection, over discharge, over current, over , short circuit and power down, which is stable and
ABS Material This solar panel controller is made of high quality ABS material, which has high strength and long last durability
Automatic Voltage Identification This solar regulator integrates household type and street lamp type, and can automatically identify 12V or 24V
