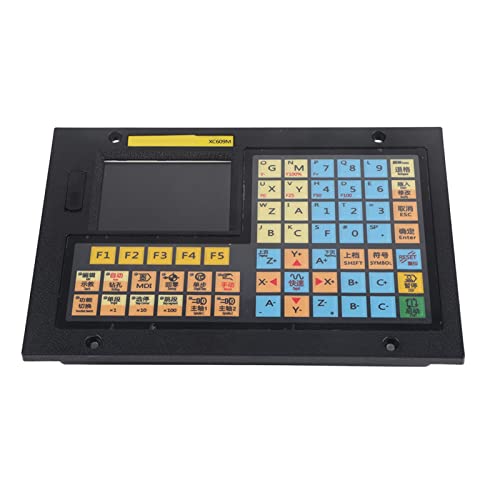

XC609M multi-function multi-purpose CNC system is the choice of CNC drilling machine, CNC milling machine, special machine tool, automatic equipment, automatic welding robot, feeding robot, coordinate robot, etc.Specification:Control axes number:2 axesLinkage axes number: Full linkageSimulated spindle:2Spindle monitoring: YesSmall instruction unit: 0.001 mmMaximum instruction:±99999999 x small instruction unitFast feed speed:12000 mm/ minFast feed rate: F0,25%,50%,100Cutting feed speed:12000 mm/ minFeed rate:0 ~ 150%Electronic gear ratio:1 ~ 65535:1 ~ 65535Automatic acceleration and deceleration: YesLocation: G00 (linear interpolation positioning)Interpolation: straight line (G01), circular arc (G02/ G03/ G12), spiral interpolationReturn reference point: Auto return reference point (G28)LCD: 3.5 inches TFT LCD screen, resolution 480X320MDI soft keys: 5Single step feed: x1, x10, x100Communication interface: USB interfaceExternal handwheel interface: YesI/ O interface:24/24 (can be extended to 96/96)Power supply: DC24VAuxiliary function: M2 digit, user-defined M code, manual/MDI/ automatic control spindle forward, reverse, stop;Control coolant start and stop;Control lubrication start and stop, etc.Note:Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
[Description] XC609M multi-function multi-purpose CNC system is a new generation of CNC system.It supports milling, boring, tapping, drilling and automatic feeding.It uses 32-bit high performance microprocessor, real-time multi-task control technology and hardware interpolation technology, full linkage, 0.001 mm interpolation accuracy, whose speed is 12 meters per minute.
[Brief technical feature] It can run 3 programs at the same time (1 main program,2 sub-programs), convenient processing, feeding, cutting procedures. Equipped with 5 soft function keys, easy to learn and operate.Provides rich display interface of the parameter classification, the alarm log, the system diagnosis, facilitating the debugging maintenance.
[Compatibility] Using 3.5-inch color wide-screen LCD, resolution 480X320, fit for Win interface style. Standard G instruction, compatible with FANUC system instruction. 40 kinds of G instructions, support drilling cycle, tapping cycle.
[Practical] Part program full-screen editing, built-in 128M massive program space, can store N parts programs. Input 24 (can be extended to 96) points, output 24 (can be extended to 96) points (user-defined), flexible and convenient. With USB interface, support file reading and writing, data backup of USB flash drive.
[Easy to Use] Chinese/ English operating interface, complete help information, more convenient operation. The system adopts the acceleration and deceleration control before interpolation. Support multi-level operation rights, convenient equipment management, time-limited system locking function. Support third-party software G code files.
