5-Axis CNC Motion Controller - 500KHz Offline USB Motion Controller Replacement for CNC Machines | Perfect for Woodworking, Metal Engraving & 3D Printing

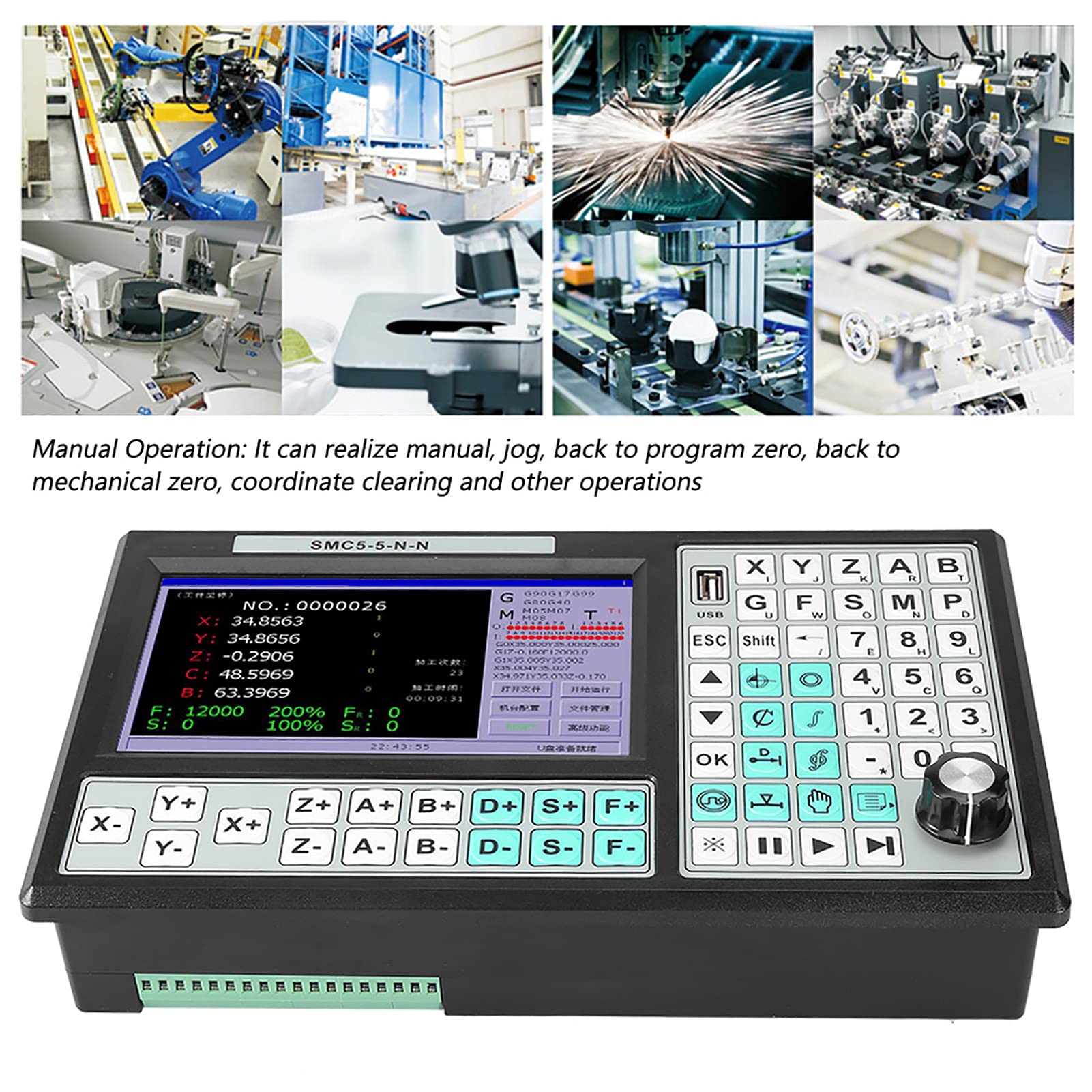

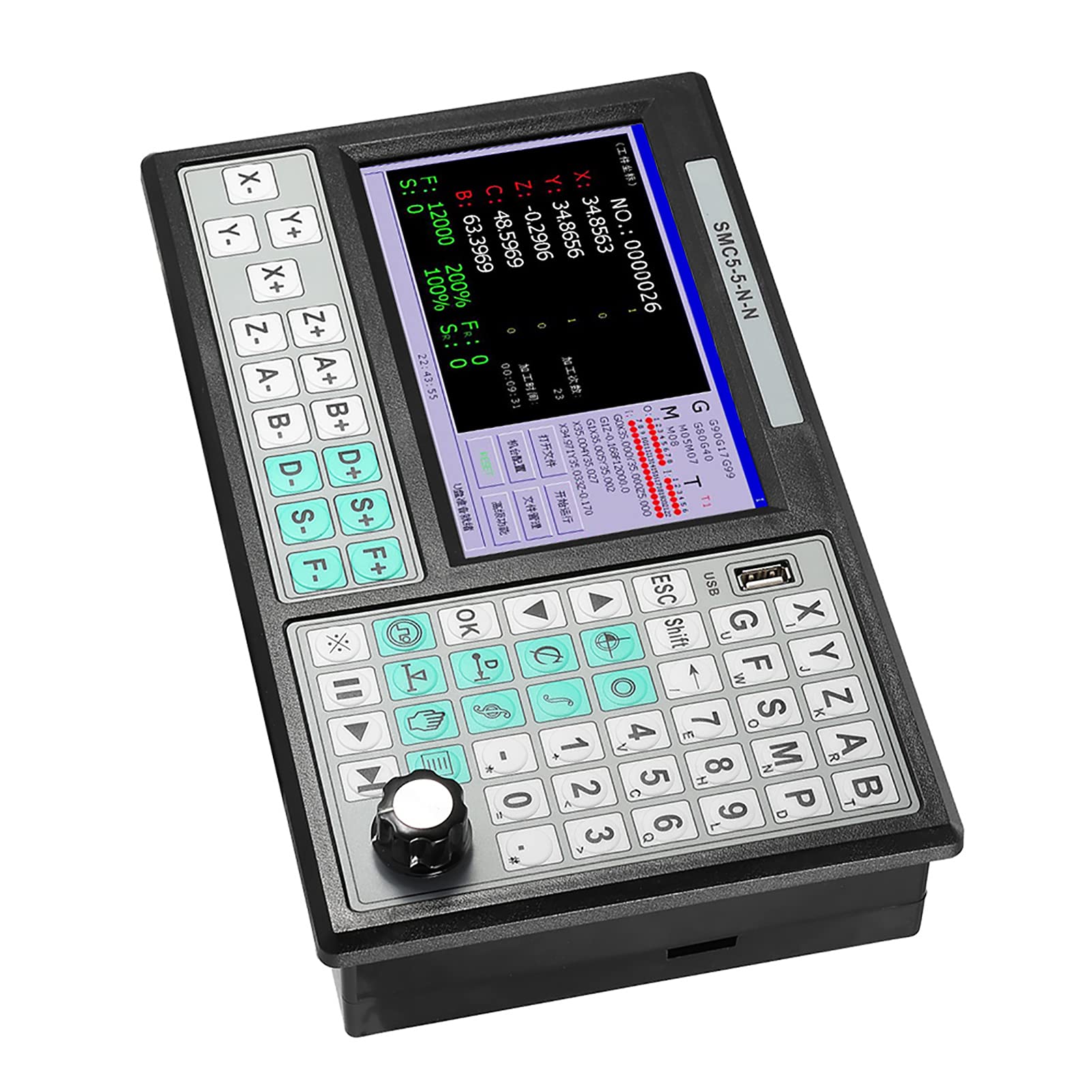

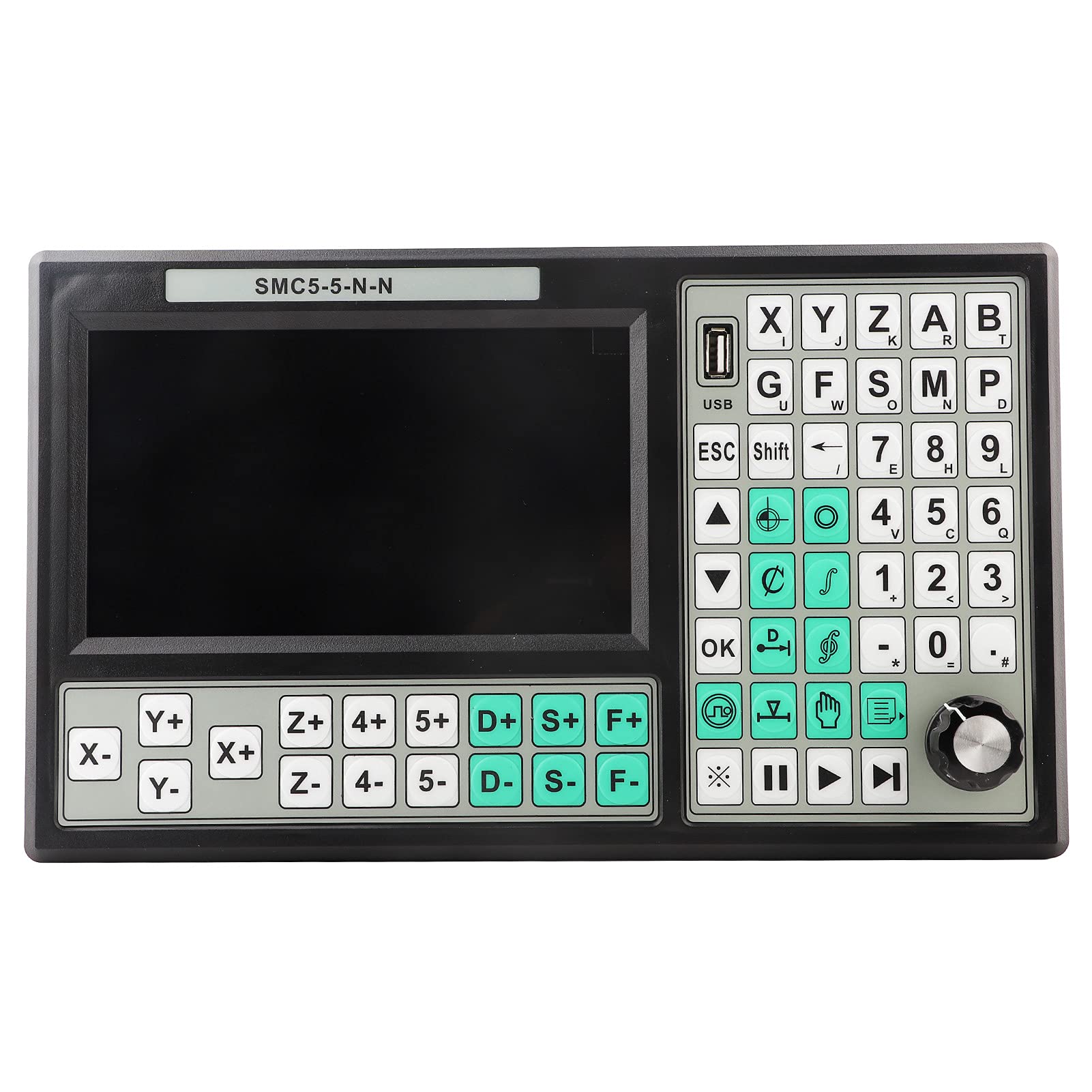

Controller offline CNC a 5 assi CNC The latest "motion controller" developed by our studio adopts high-performance 32-bit CPU and high-performance FPGA, features a seven-inch LCD display, easy-to-use window-type man-machine interface and memory uses external USB port and built-in TF card (user can Optional), large storage space, 12-24 volt working voltage, ultra-wide input, light touch operation keyboard. This system has the features of high reliability, high precision, low noise and convenient operation. Simple and clear parameters bring convenience and speed to operations. The input / output setting function is convenient for use and maintenance. 500KHz 5-channel pulse output: Specification: Standard data unit 0.001 mmOverall accuracy: ± 2PPContinuous straight line angle accuracy: 1/4 of the arc height of the corner under normal conditionsMax. Data size: ± 99999.999mmMax.pulse output frequency: 500KHz (all five axes can be 500KHZ at the same time)Number of control axes: 5 axes (X, Y, Z, A, B)Number of Link Axes: 5-Axis Link and 5-Axis Multi-Micro Multi-Micro Interpolation ControlSupport U disk, built-in memory, which can expand up to 32GWeight: approx. 1174g / 41.4ozPackage List: 1 x 5 Axis Offline Motion ControllerNote: Please note that the new type and old type of this product will be sent randomly, and make sure you don't mind before you order. The data controller can: Five-axis link Forward-looking control algorithm of the multi-micro multi-line segment Five-axis linear interpolation and five-axis multimicro and multiline continuous interpolation Intermittent control of carving Shutdown storage coordinate function Hand-wheel control interface support. Free choice of input function: The limited input port can meet the various needs of the user The main function: Parameter Setting: Various control parameters related to processing and operation can be set to achieve the best processing effect.Manual operation: Can realize manual operation, jog movement, program zero return, mechanical zero return, coordinate reset and other operations. Program management: new programs, delete, modify, read, save, copy and paste, automatic processing, continue, pause and other functions can be performed on the programs.External Manual: A number of external manual functions can be defined for easy use.External Hand-wheel Controller: You can set the step length of each step and supports two modes: position and speedLearning function: it is possible to define an external input or a control input from the panel. Launch the main interface The upper left corner shows the path of the current file.The lower right corner shows the status of the inserted U disk.(Workpiece coordinates) (machine coordinates)The display (part coordinates) can be changed to display the mechanical coordinates by pressing SHIFT on the panel in the main interface Hardware composition: High-performance, high-speed 32-bit ARM CPU,High performance FPGA LCD display (resolution: 800 × 480)Input / output (photoelectrically isolated 2-channel 10mA input, 8-channel photoelectrically isolated tank current 500mA output)
