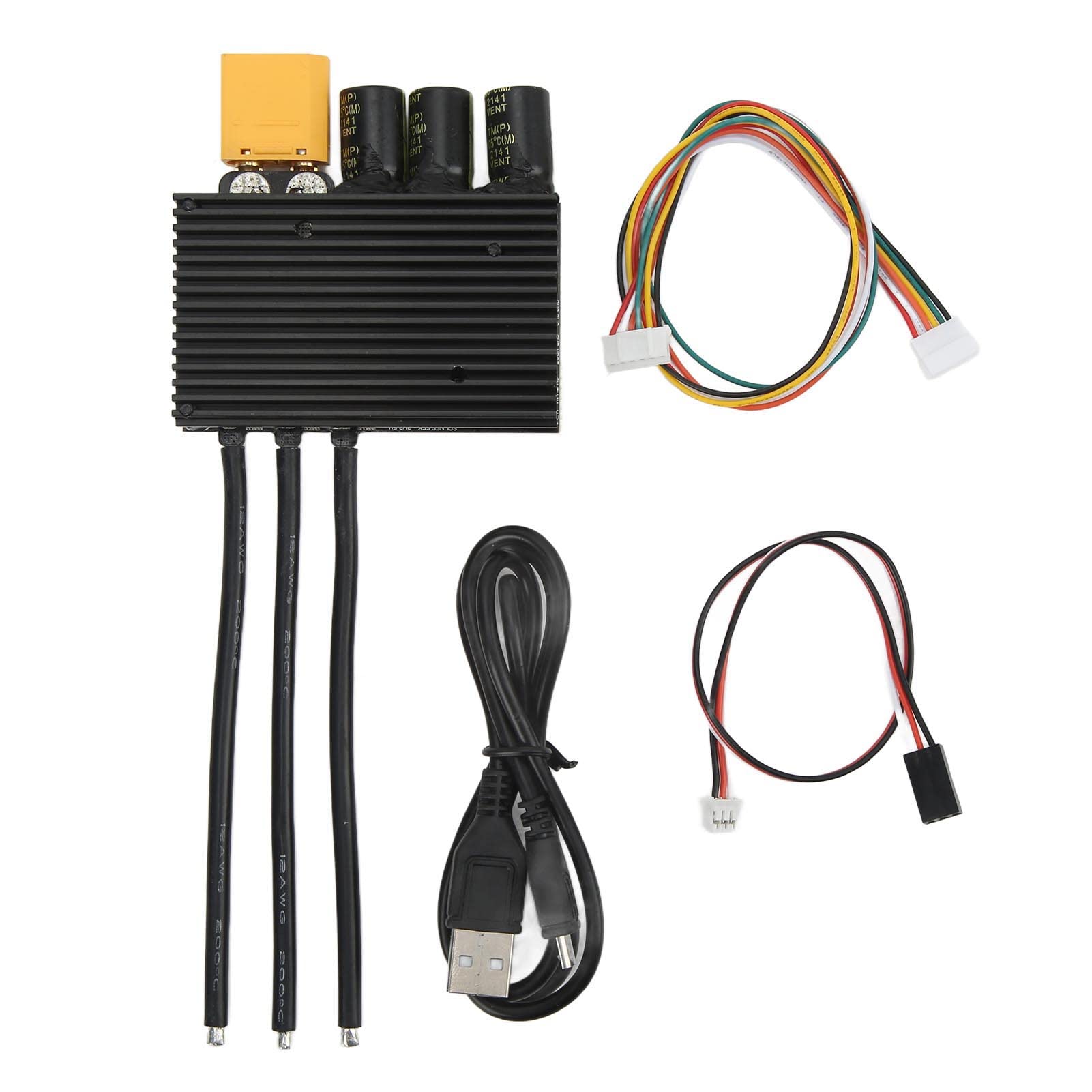

Specification: Item Type: Electric Speed Controller Material: PCB, aluminum alloy Input Voltage: 14-60V (safe for 4-12s), the peak voltage should not exceed 60V Continuous Current: 70A Instantaneous Current: 200A ERPM: 150000 Communication Port: USB, CAN, UART Communication Method: PPM, ADC, NRF, UART, SPI, IIC Supported Sensors: ABI, HALL, AS5047, AS5048A Motor Cable: 12AWG Mode: DC, BLDC, FOC Package List: 1 x Controller 1 x PPM Line 1 x Hall Line 6pin Port 1 x Data Cable 1 x User Manual
ANODIZING HEAT DISSIPATION: Using aviation aluminum alloy heat sink, the appearance and size of the heat sink are determined by rigorous scientific calculation results. The thermal conductive silicone is matched with the heat sink to enhance the heat dissipation performance of the ESC.
IMMERSION GOLD THICKENING PROCESS: Designed with 6 layer PCB, and the copper foil thickness of each layer is 30Z. At the same time, the PCB is immersed in gold skylights in key parts to increase the heat dissipation performance and increase the overcurrent treatment process to make the overall effect better
EFFICIENT AND SAFE PROTECTION: In order to prevent the power contacts from being burnt and oxidized by electric sparks, effectively protect the electronic components of the integrated circuit from breakdown damage, and avoid sparks that may cause explosions, a spark switch function has been added to the front end of the power supply
UPGRADE CHIPS: C37, C39, C40, C41, C43, C44 are all changed to high voltage capacitors 10UF100V, which makes the voltage change of the MOS more stable and the efficiency better. Replaced the LM3671 chip with a two way MC5219 3.3YM5, upgraded from the original 33V, 600MA to 500MA x 2(1A) output, better power supply for peripherals
WIDE APPLICATIONS: This electric speed controller is widely used in robotic arm, robot, battle robot, DIY off road vehicle, etc.
